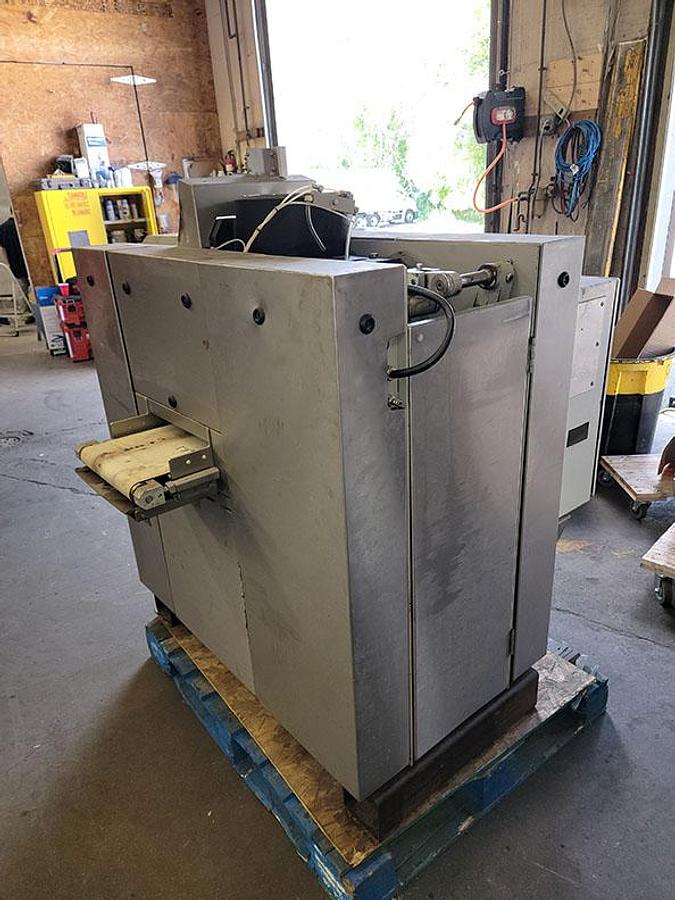

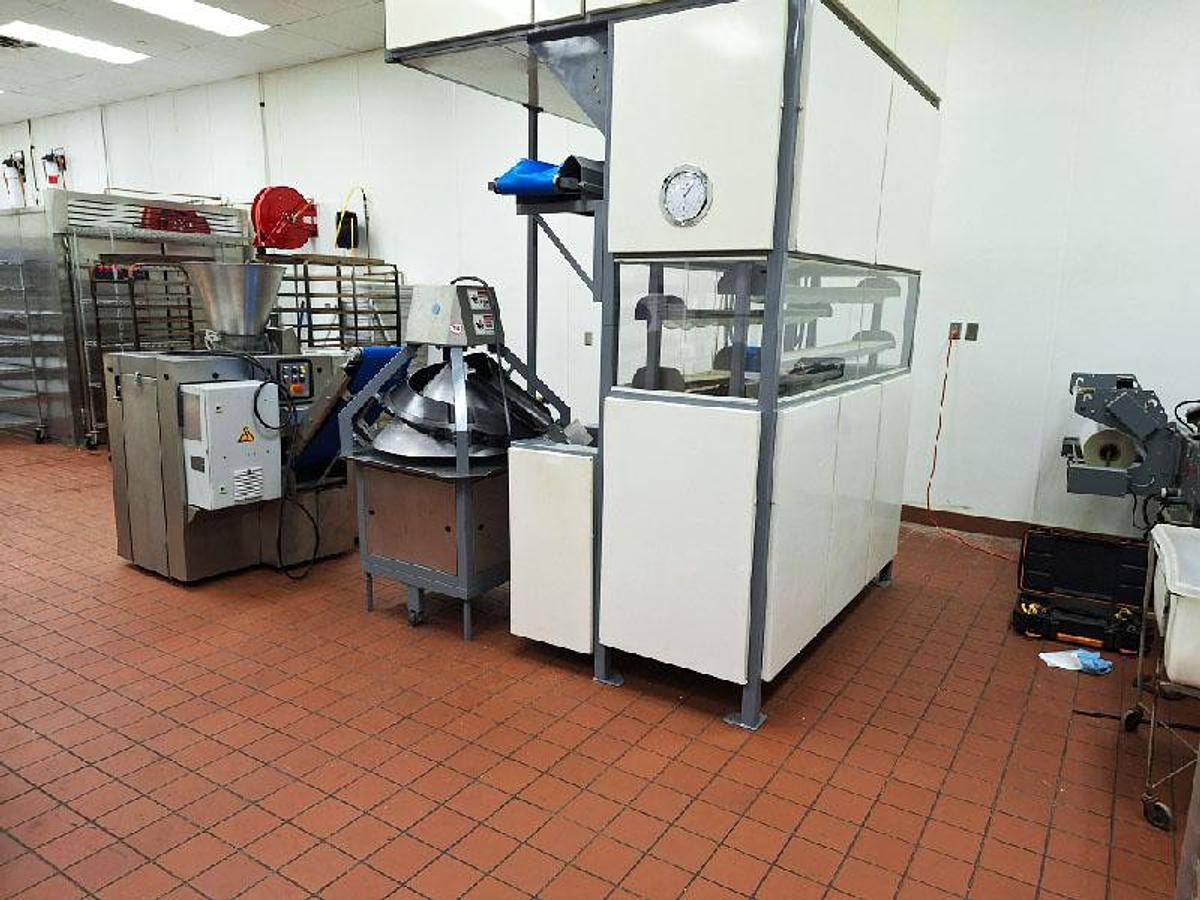

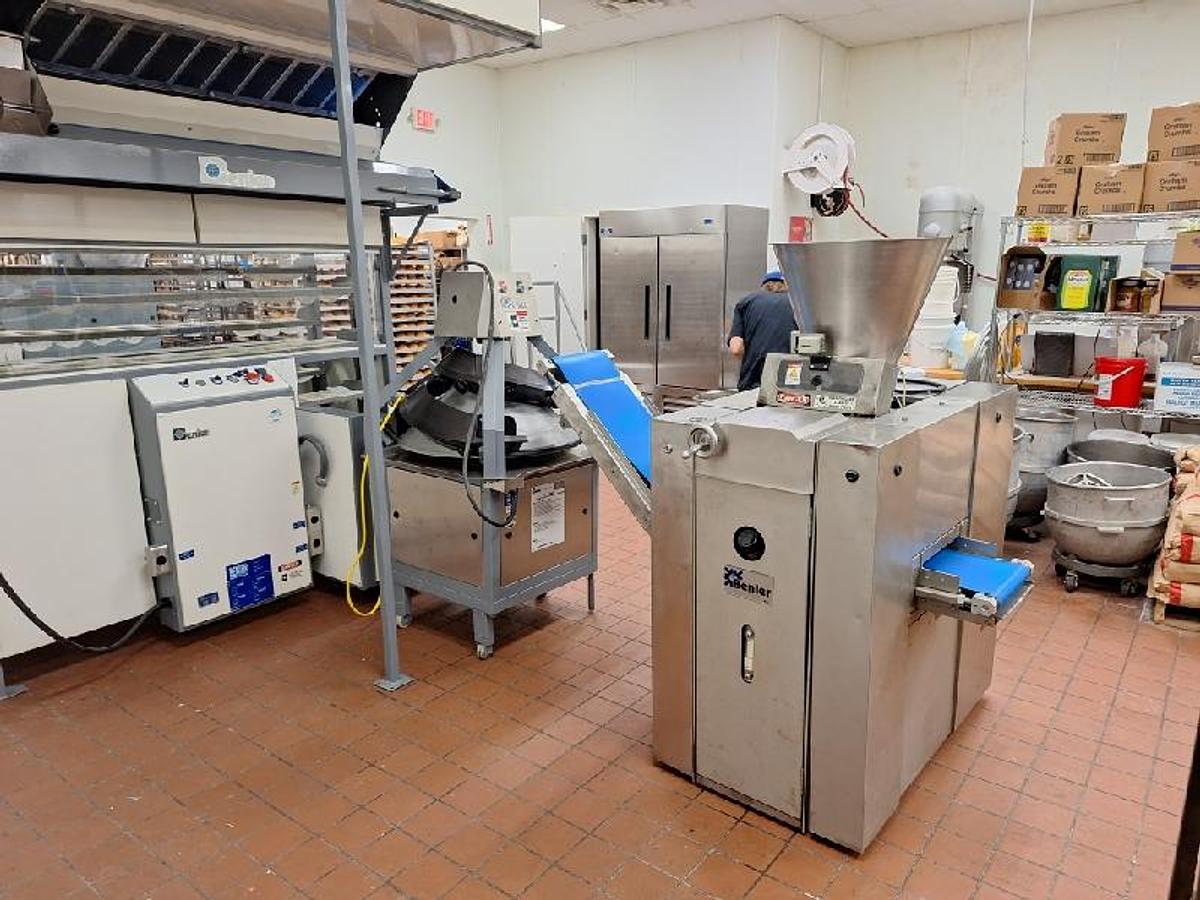

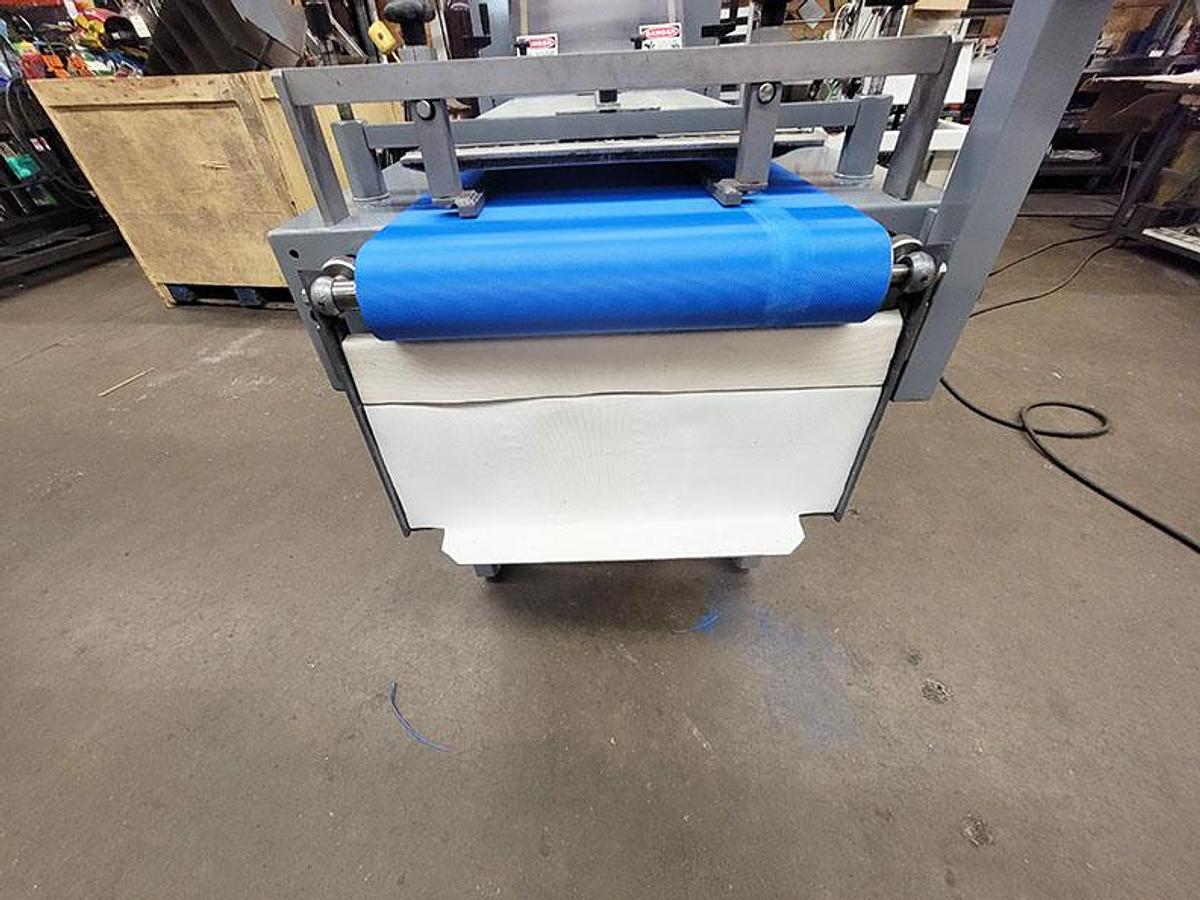

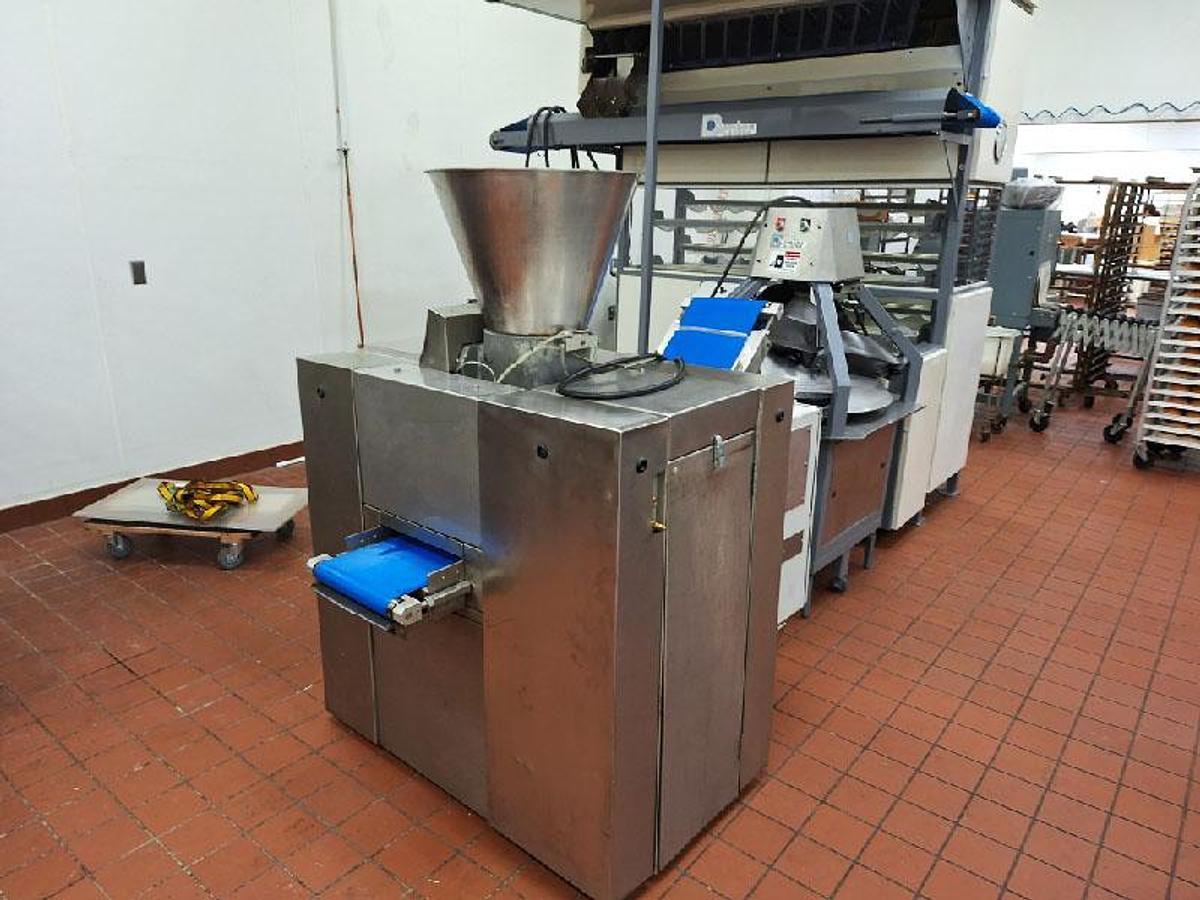

Benier Bread and Roll System

Benier System Consistion of the Following Items

Complete System to be fully rebuilt

Rebuilding Includes:

* Cleand and Dismantled for Evaluation

* New Paint

* New Belting and Belt Covers

* Proofer cups will be cleaned or replaced

* All motors to be checked and repaired as needed

* All Electrical to be checked and repaired as needed

* All Bearings, V Belts, Seals, Oil Lines etc to be checked and repaired as needed

* New Teflon where needed

* New Plexiglass

Note: Only one Power Connection Needed to Proofer Section, All other Components plug into Proofer Section

Equipment Included:

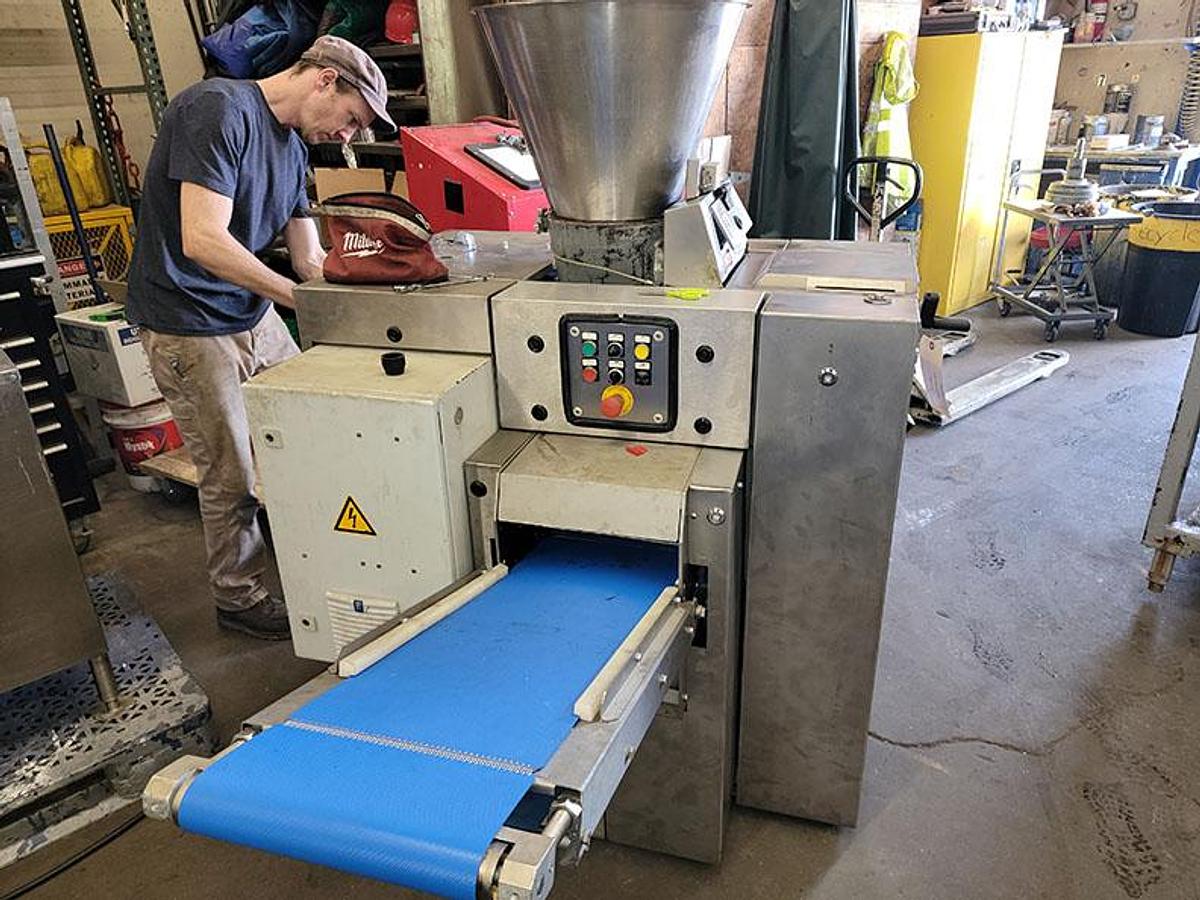

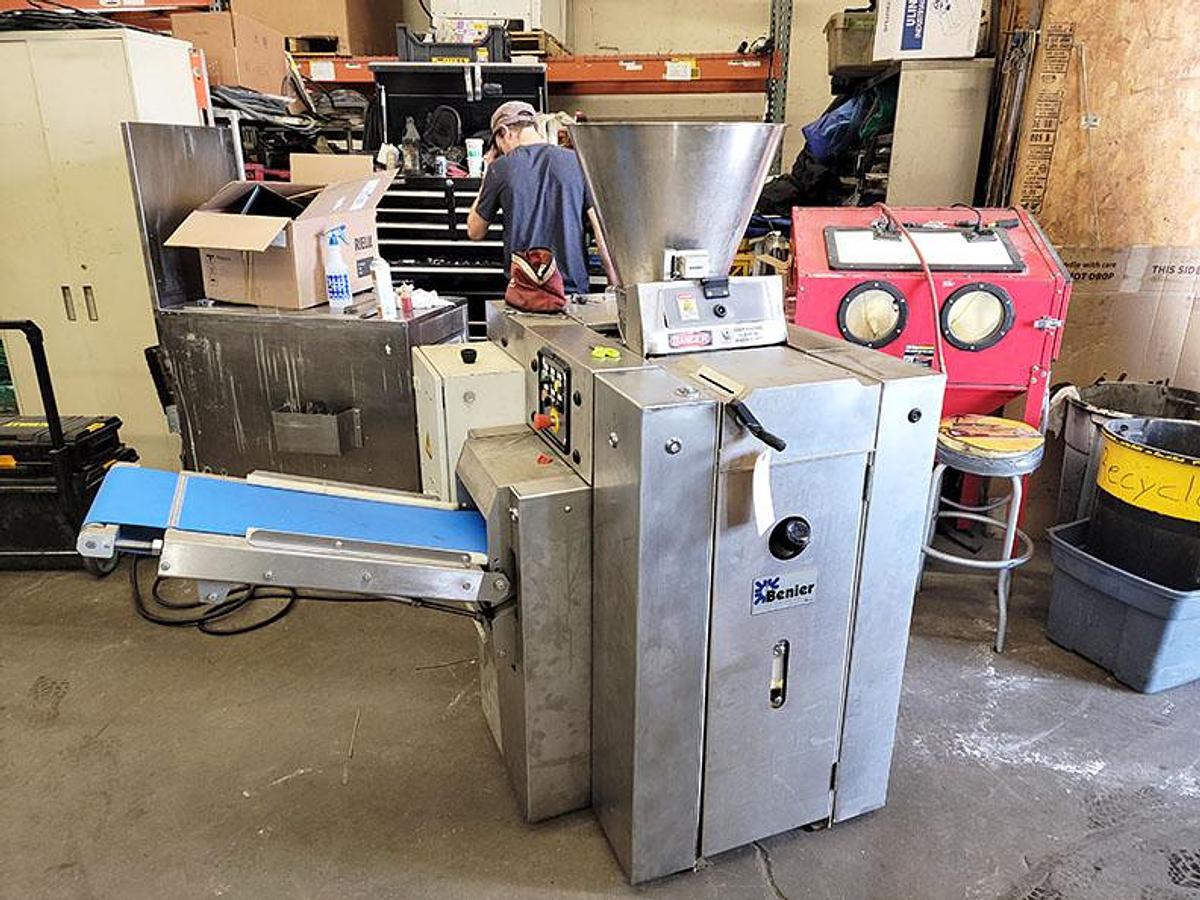

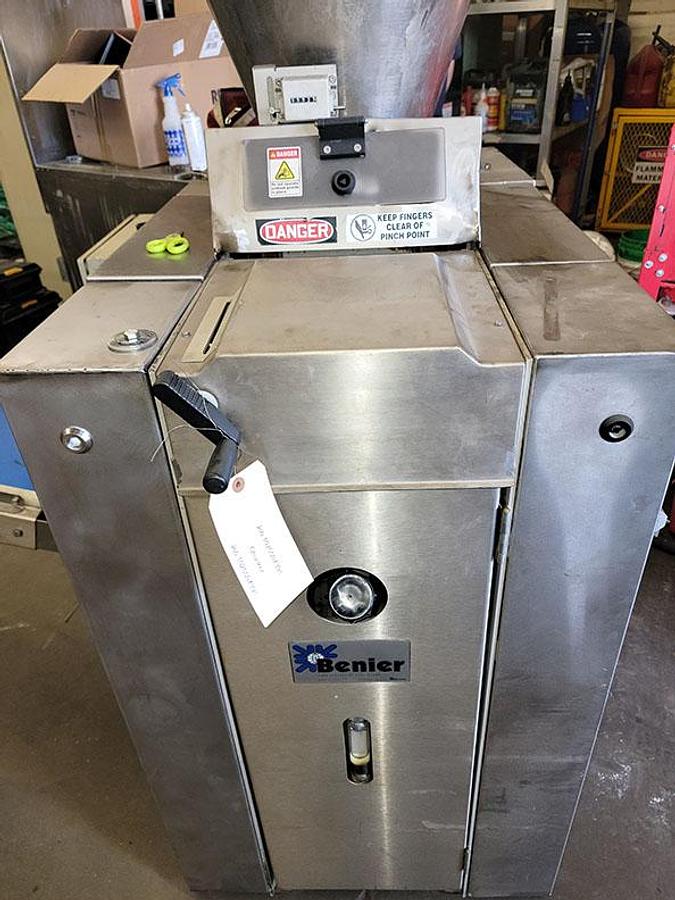

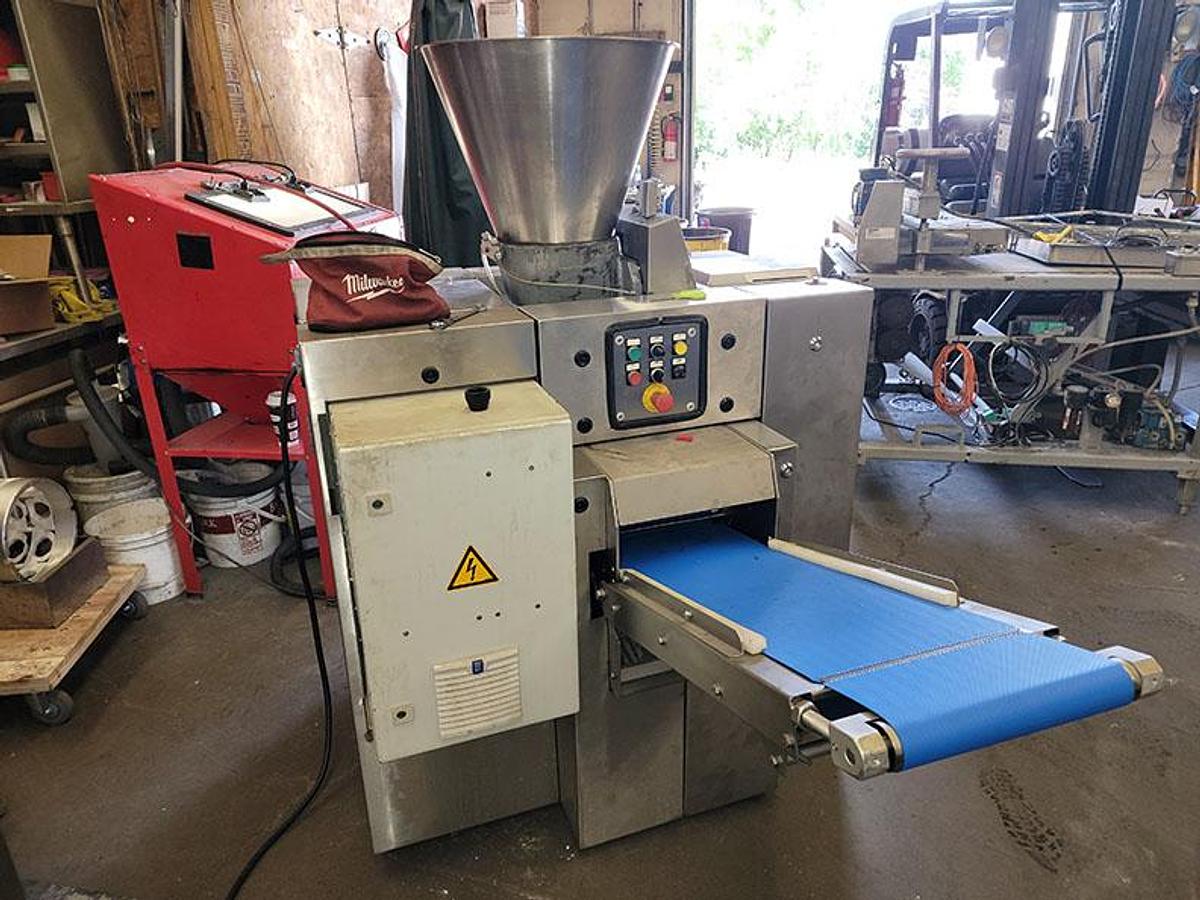

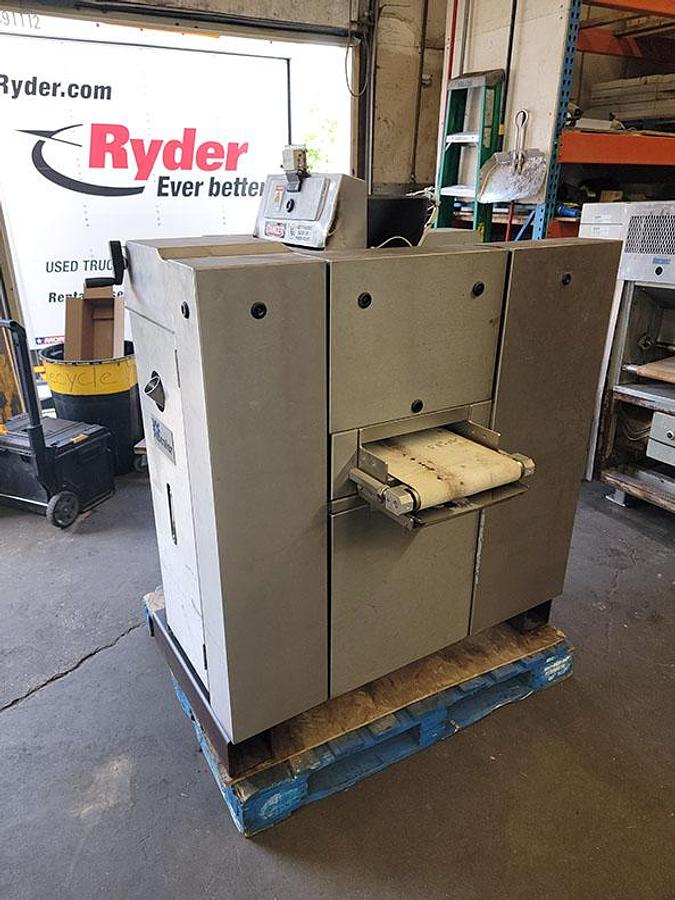

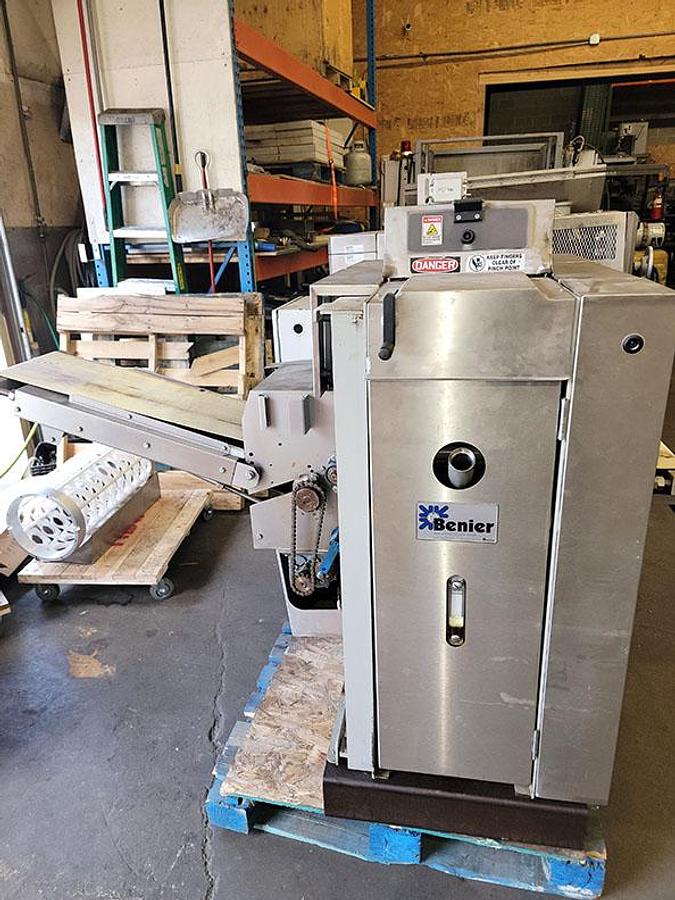

Benier Type: DAM 24 Divider / 2 and 4 Pocket

Power supply: 208v-3ph-60hz-Ground-Neutral

Features:

-High-quality wear-resistant mechanism

-Corrosion-free; Stainless steel and synthetic materials in a functional design

-Dough Pressure Regulator (DPR): improves the dividing process

-Easy to reposition

-Frequency driven crank shaft operation

-60 and 170 liter hopper

Touch screen PLC for:

-Capacity and automatic weight adjustment

-Dough piece counter

-Minimum oil level sensor

-Cleaning position

-Storing up to 100 recipes (parameter setting)

-Failure reports and process control

Model : DAM 24

Pockets: 2 and 4 Pocket

Min Weight : 2 oz

Max Weight: 53 oz

Min Cap: 750

Max Cap: 6,000

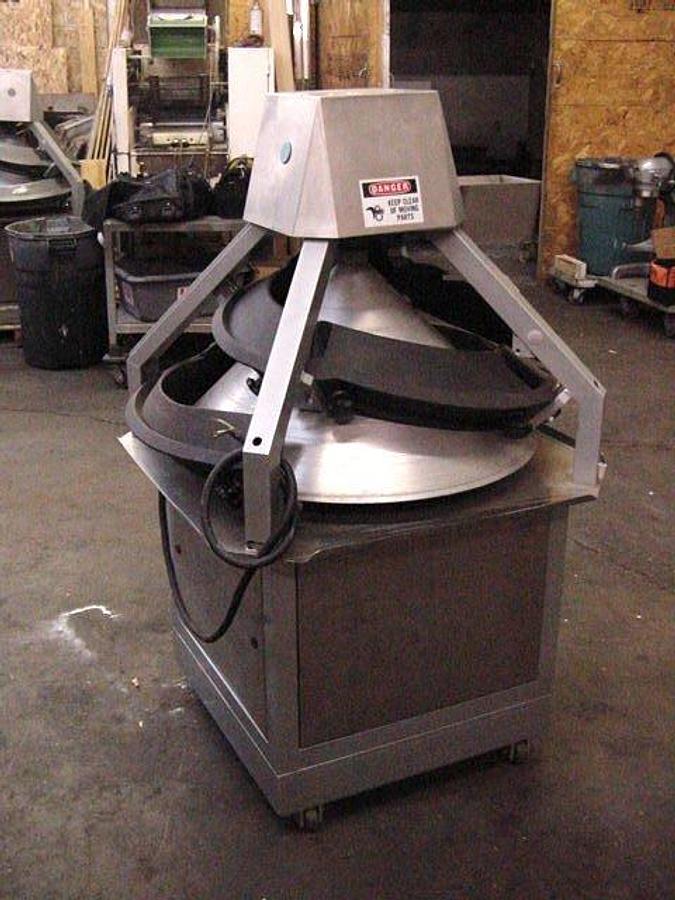

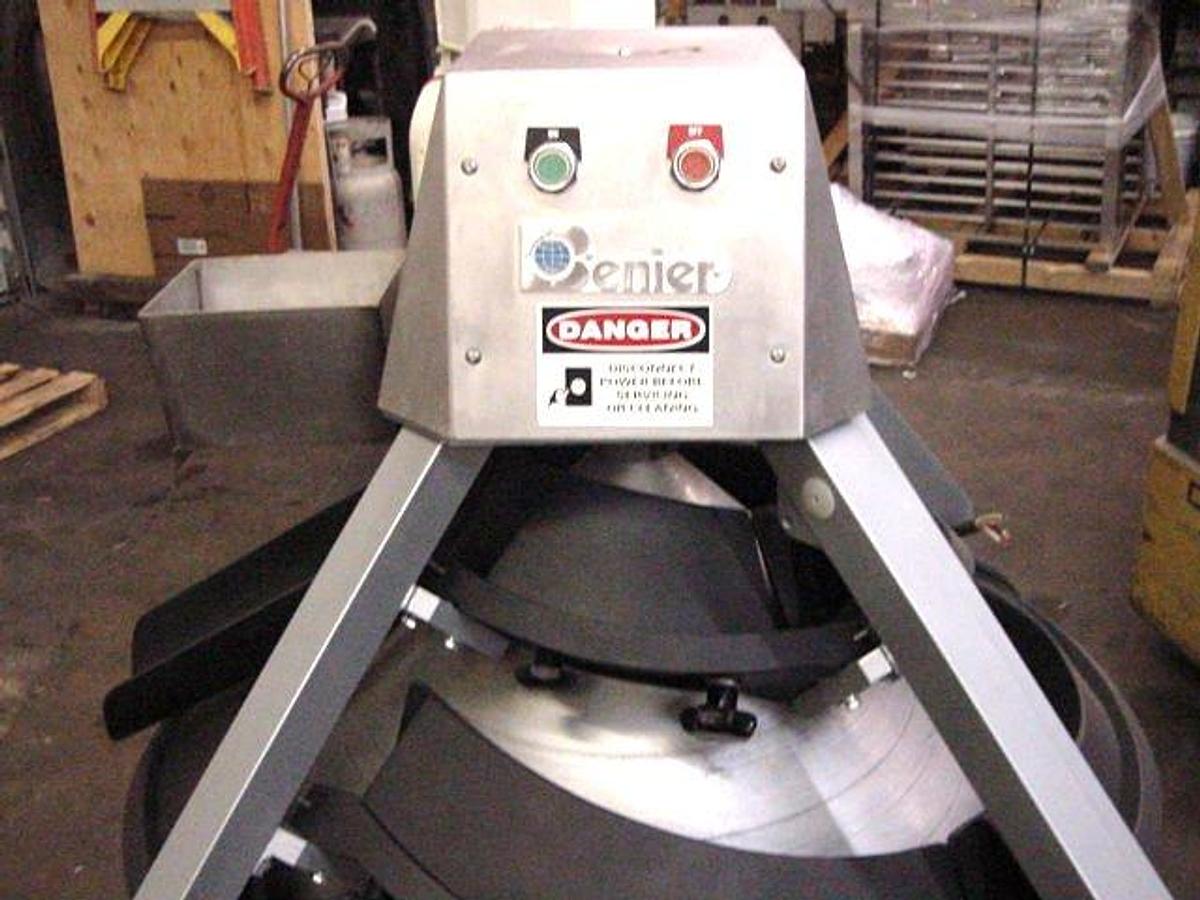

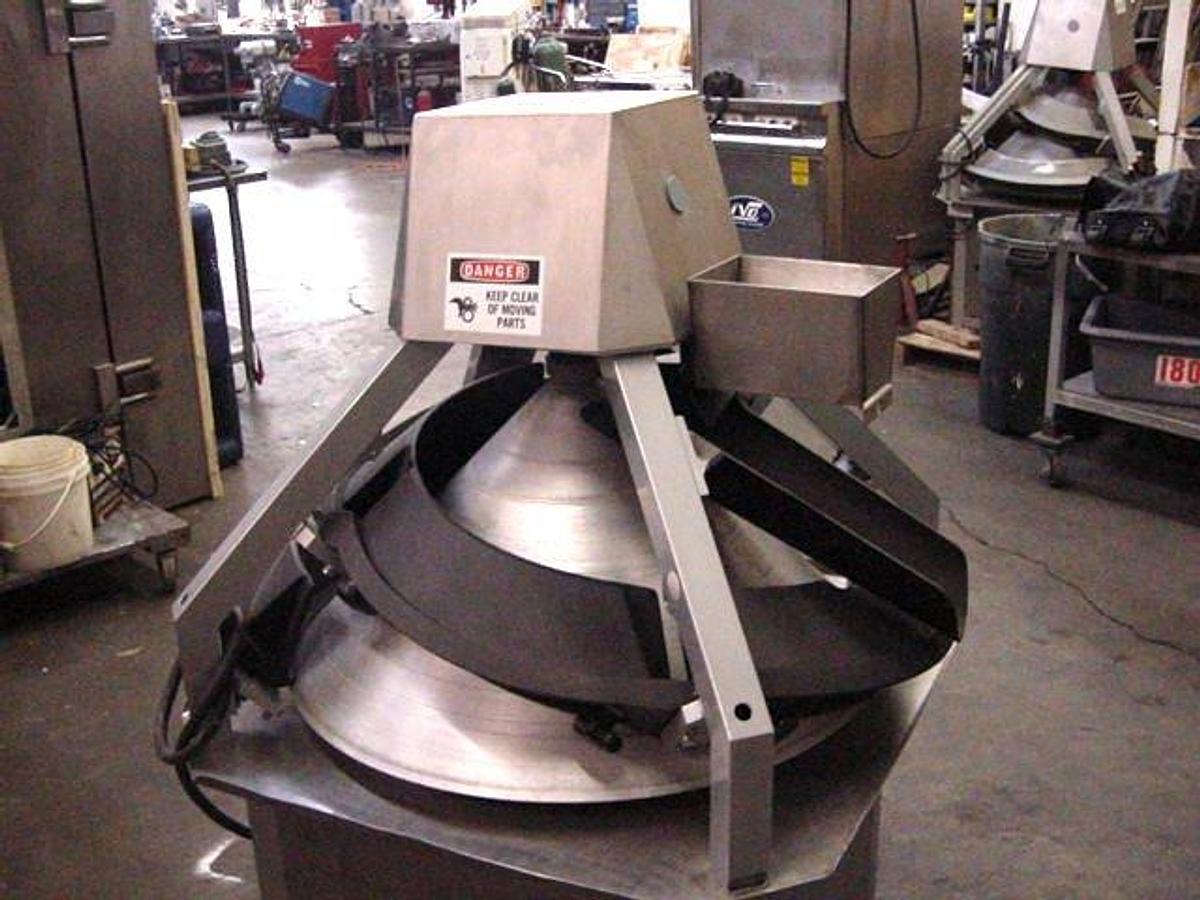

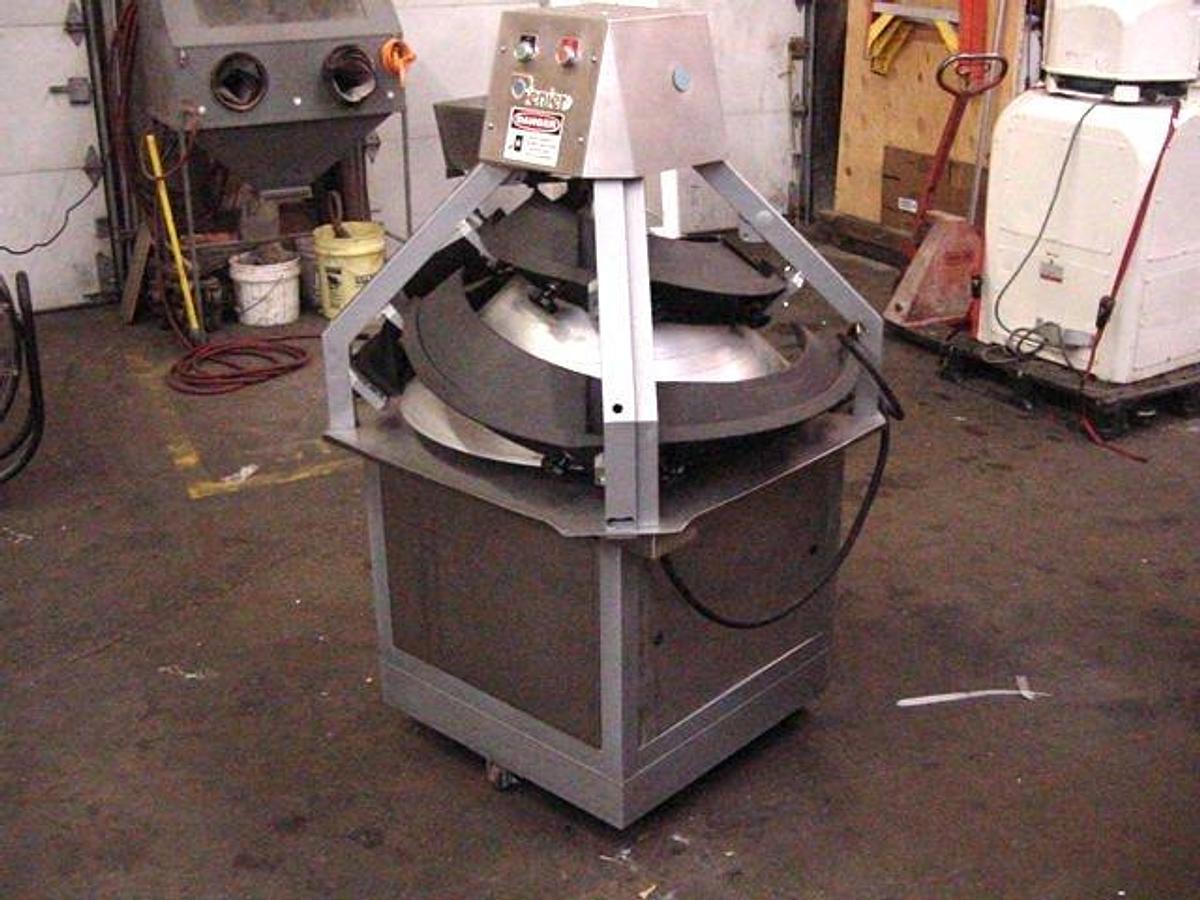

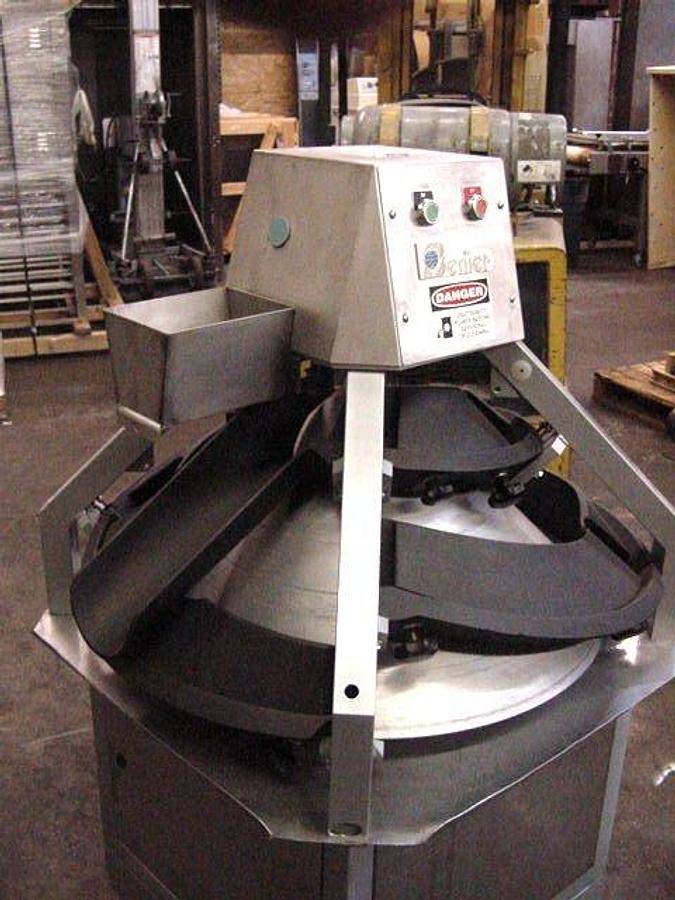

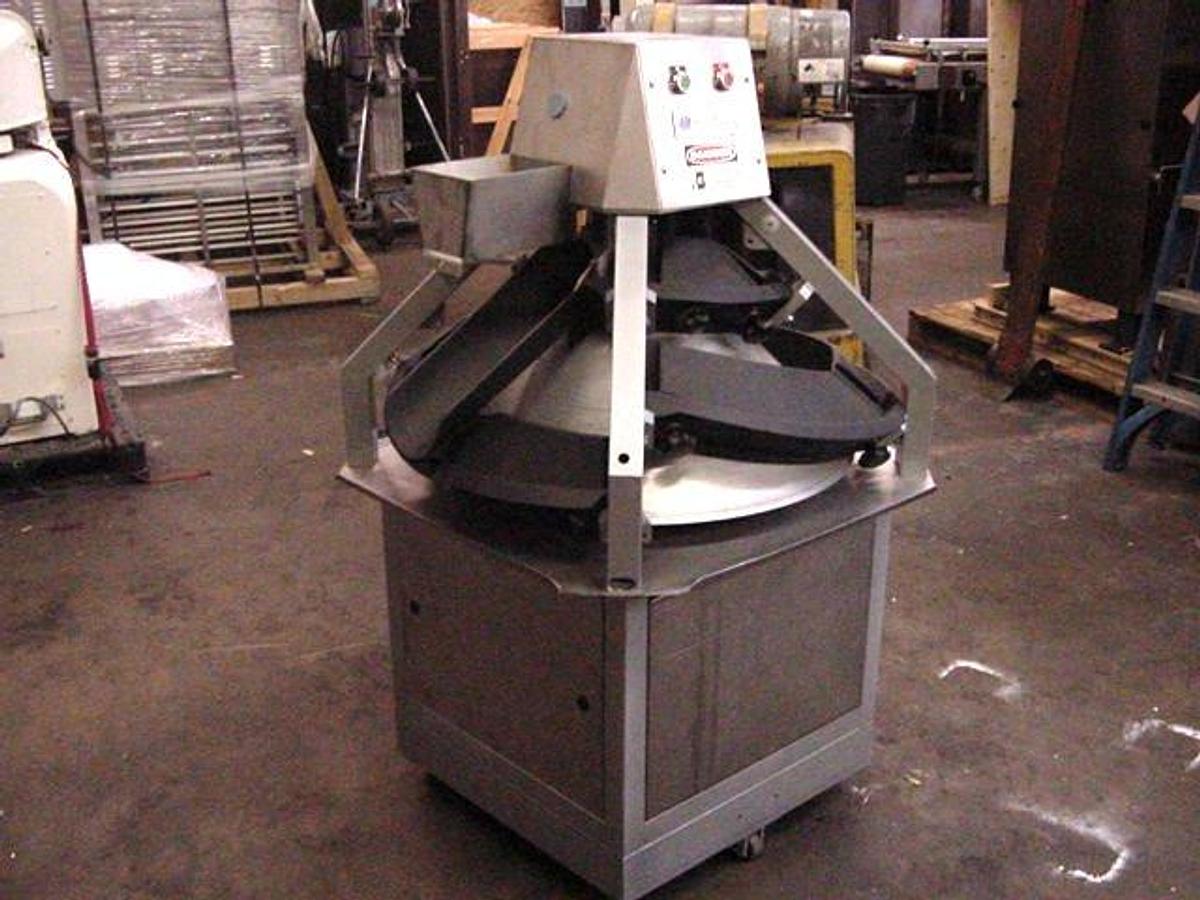

Benier C05S Bread Rounder

Power Supply: 220 / 3 Ph / 5 Amp

Capacity: Max 3,600 Pc Per Hr

Weight Range: 1 oz to 2 lb

Drive Motor: 1 HP

Features:

* Flour Duster

* Teflon Coated Tracks and Cone

* Fully Adjustable Tracks

* Stainless Steel Covers

* Painted Frame

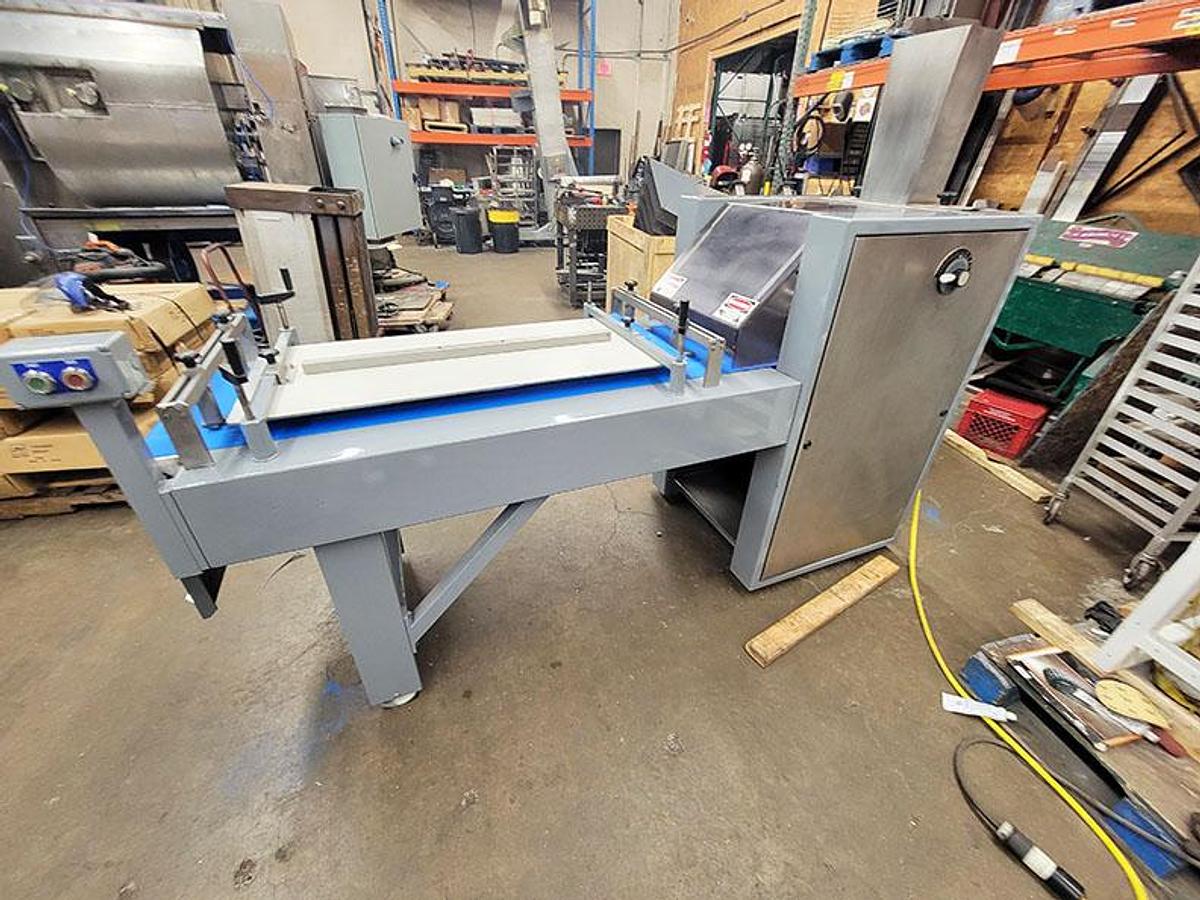

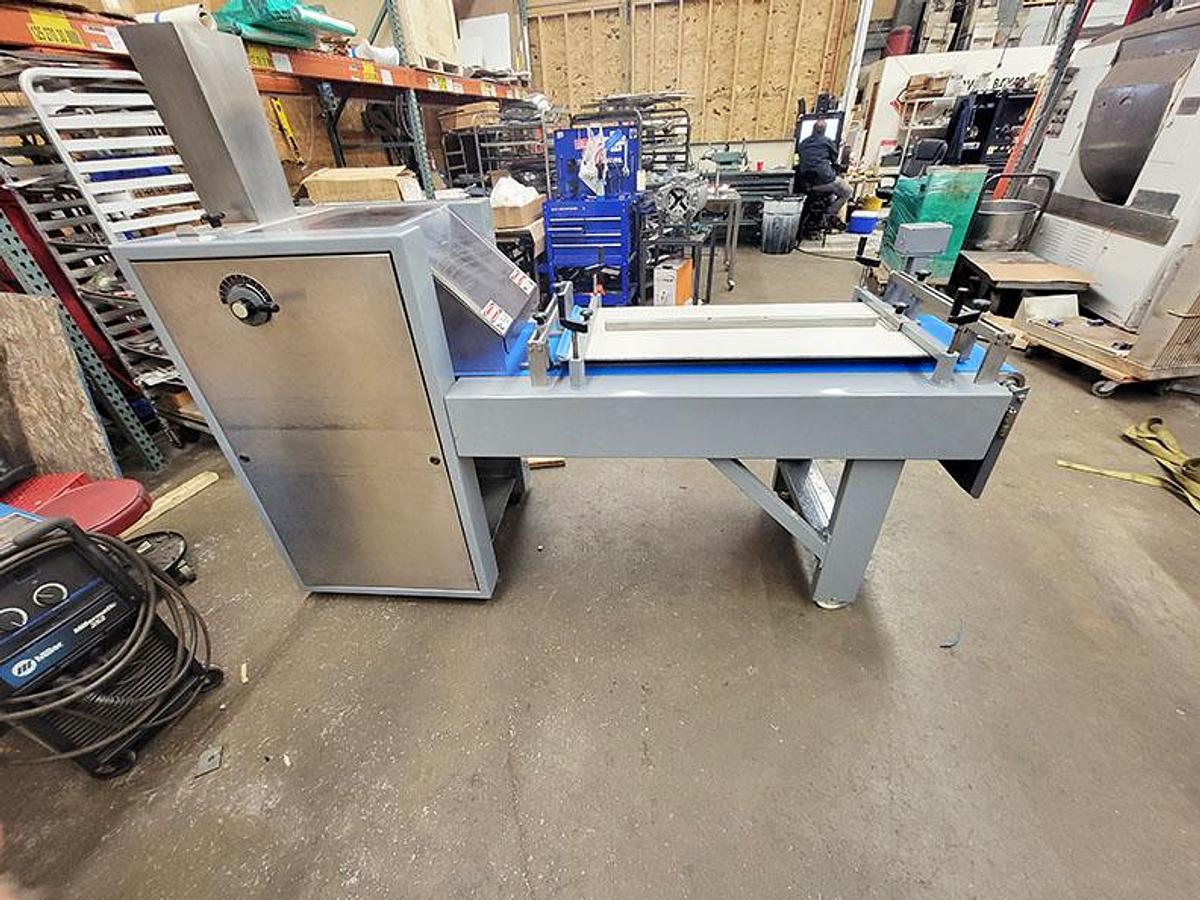

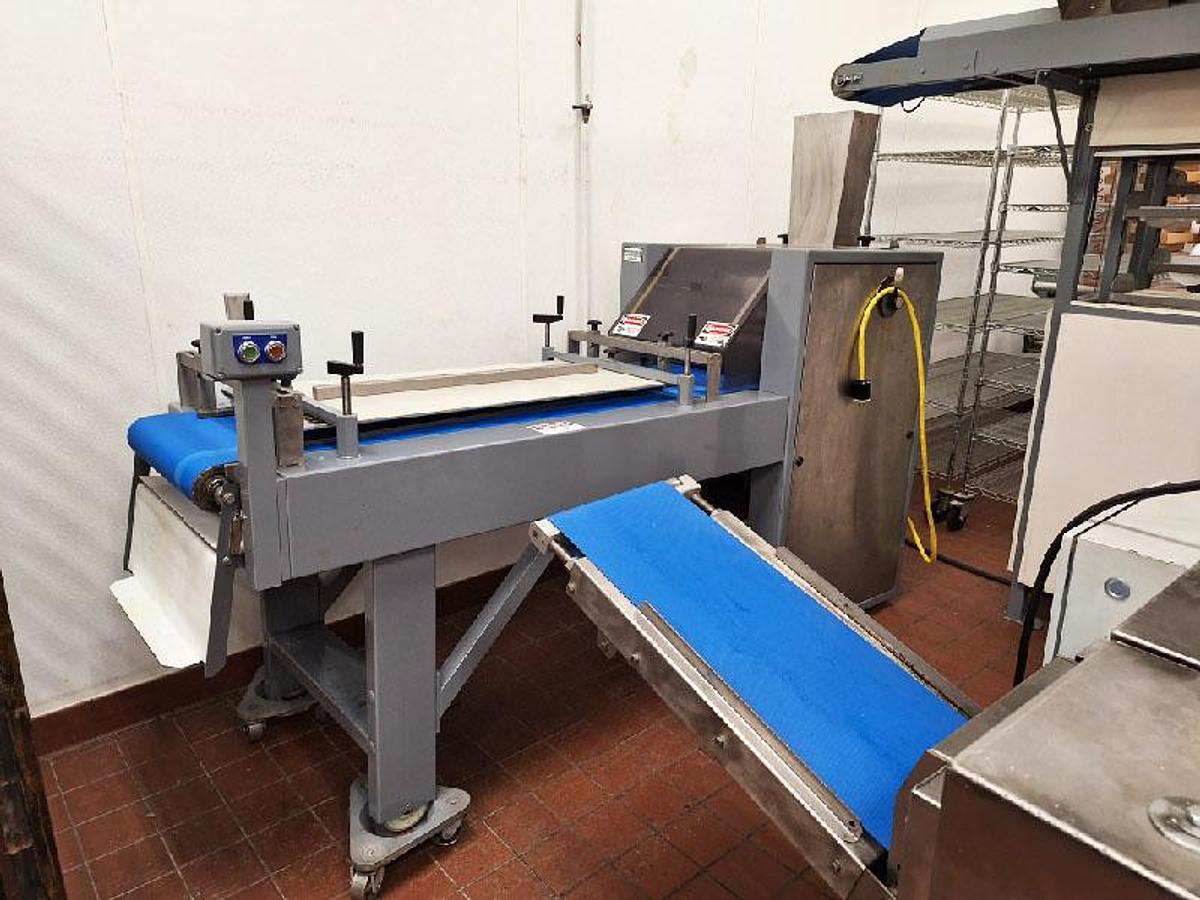

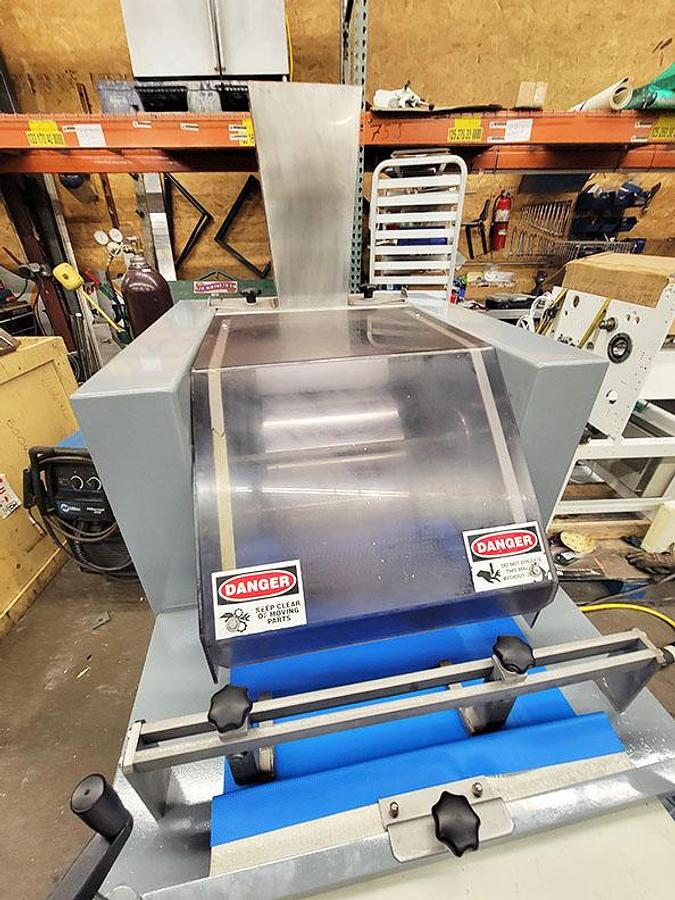

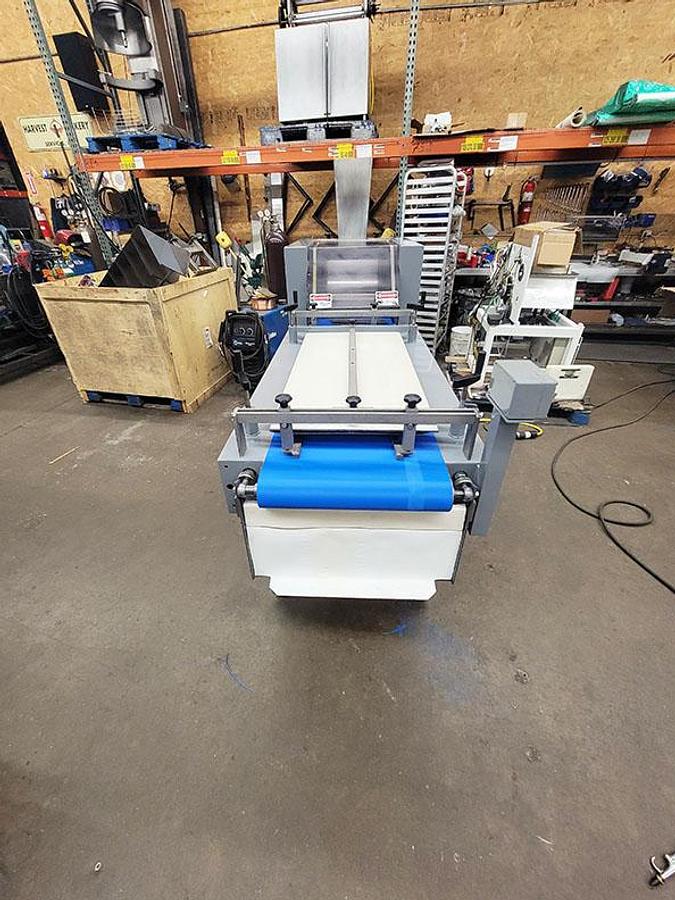

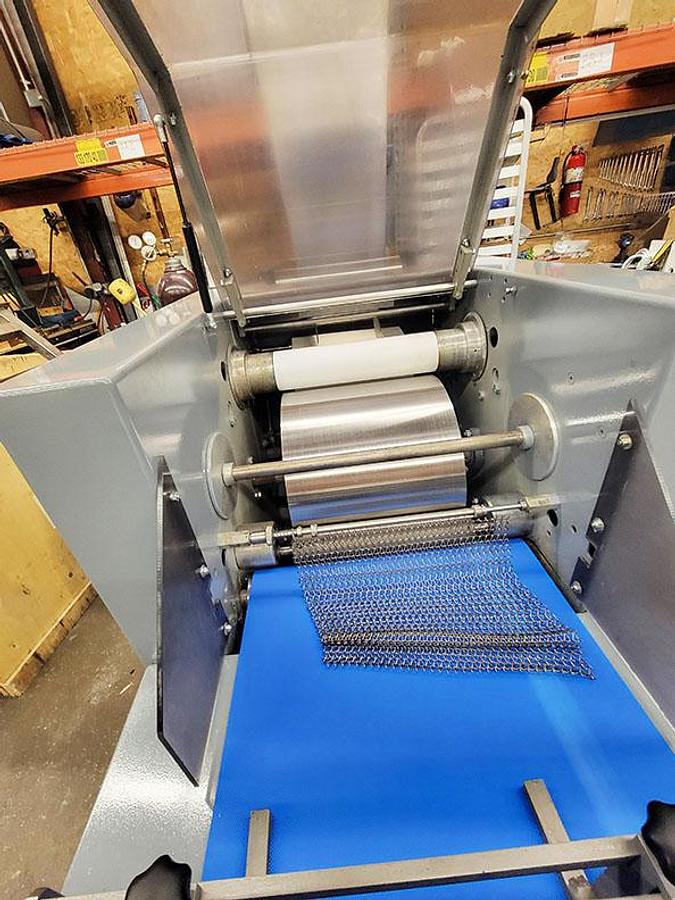

Benier BO 88/95 Moulder

Power Supply: 220 / 3 Ph / 10 Amp

Capacity: up to 3,600 pc per hr

Weight Range 1 to 30 oz

Moulding length from 6" to 21"

Features:

* Adjustable Side Guides

* Spring Loaded Teflon Coated Sheeting Roller

* Hinged Pressure Plate for easy cleaning

* Lexan Safety Sheild

* On wheels for ease of mobility

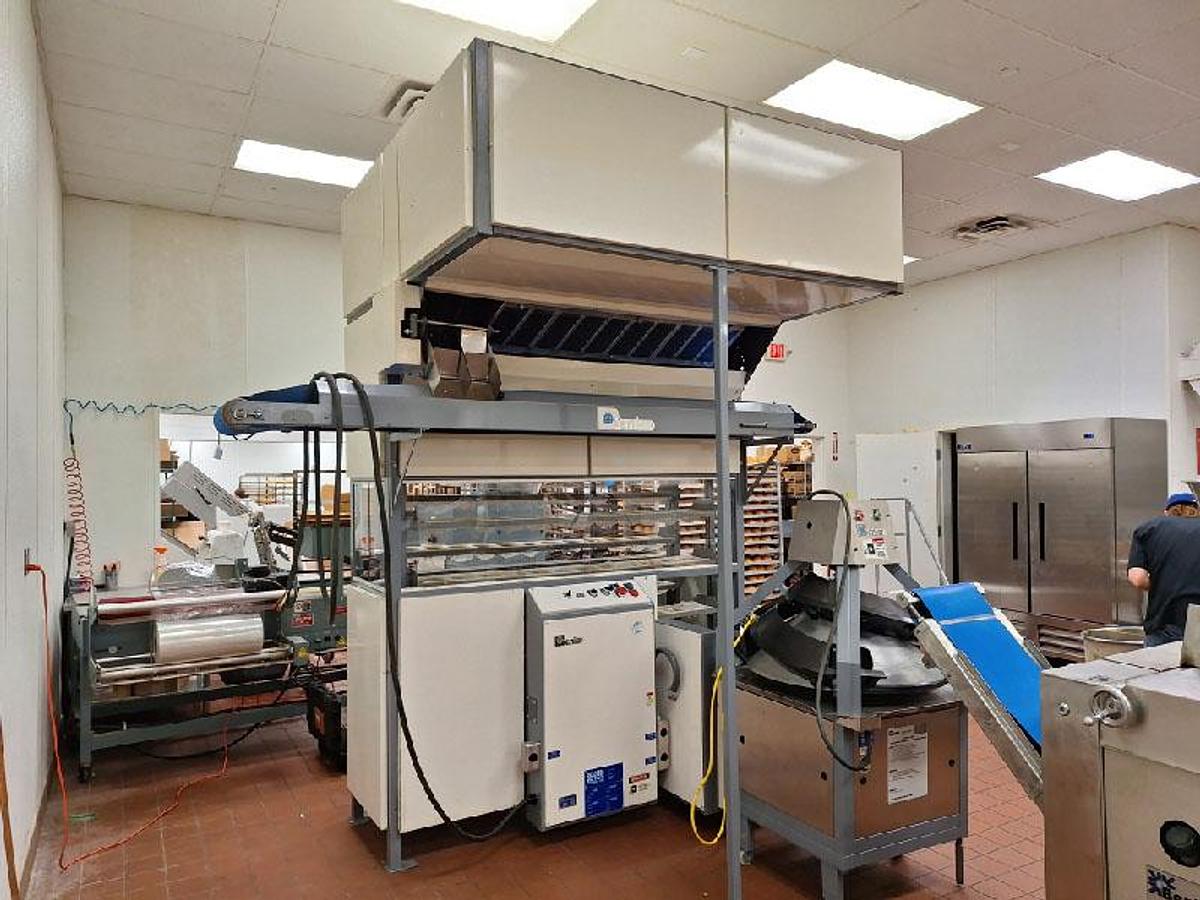

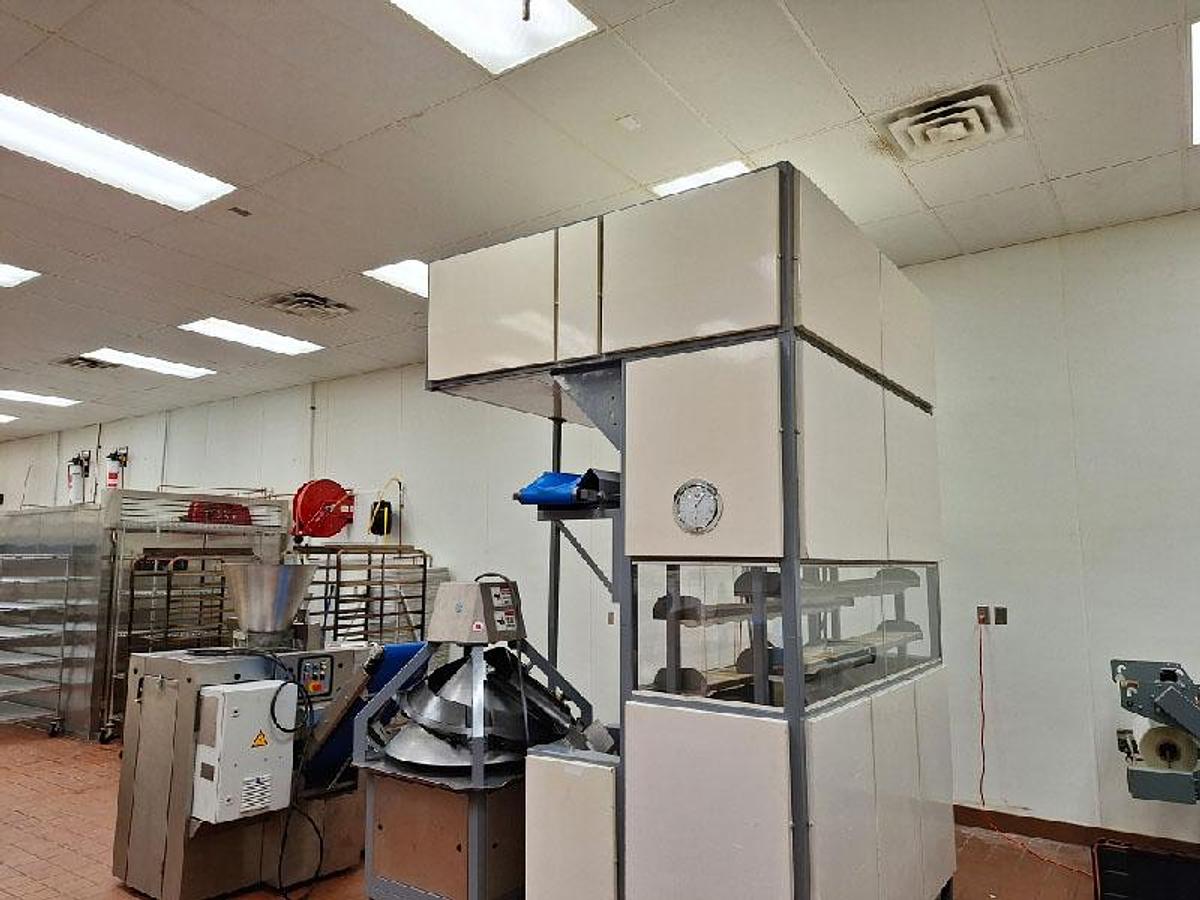

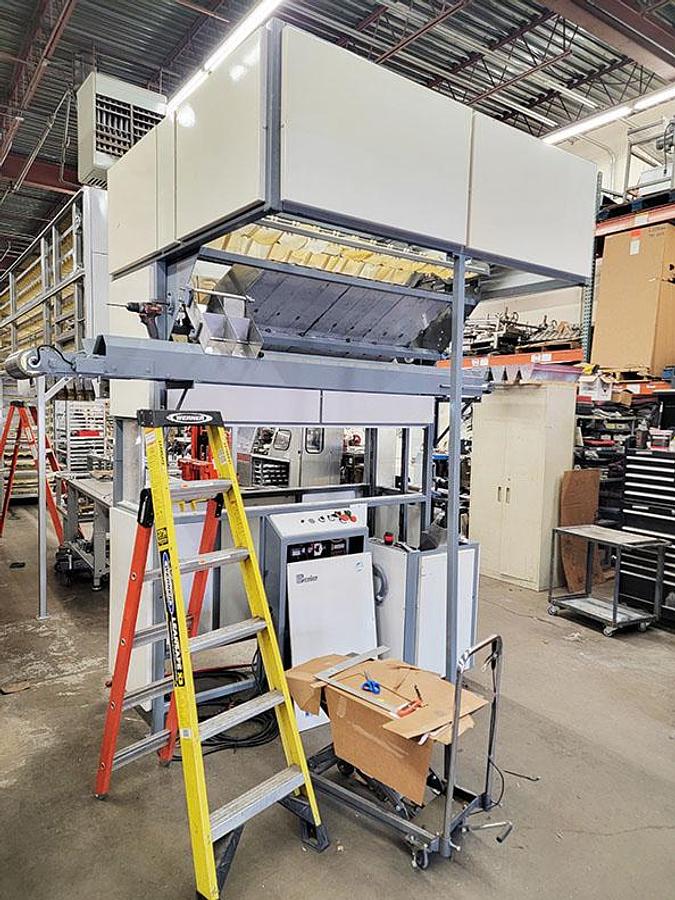

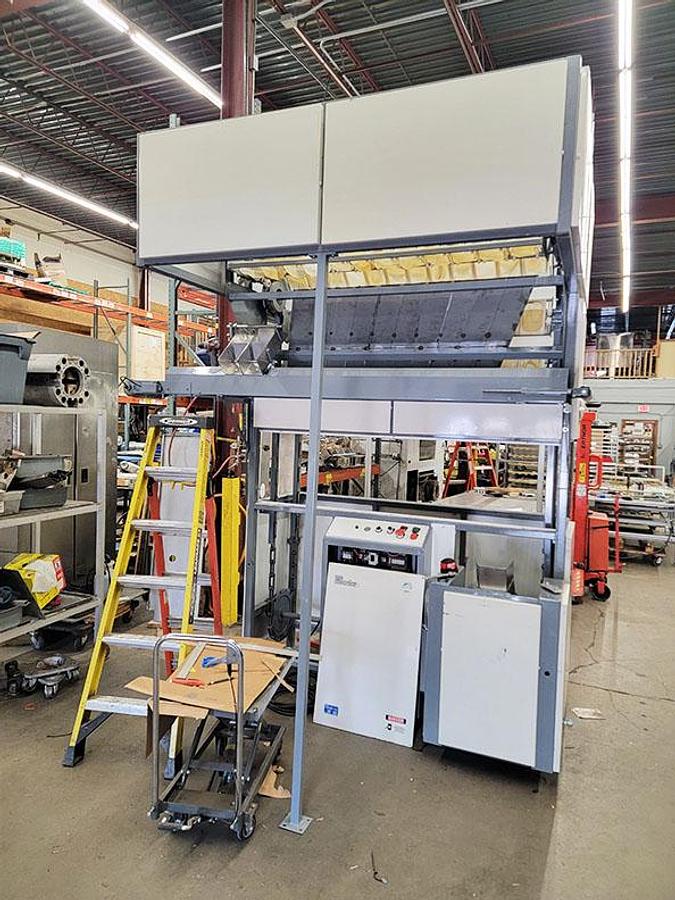

Benier BR300 Overhead Bread and Roll Proofer

Power Supply: 208-220 / 3 Ph / 10 Amp

Capacity: 2,400 pc per hr @ 7-1/2 Min / 1,200 pc per hr @ 15 min

Weight Range: 1 to 32 oz

Standard/Max Speed: 2,400/3,200

Features:

* Auto Loading and Unloading

* Bypass Transfer Belt

* All Units can plug directly to Proofer

* Speed Adjustable
