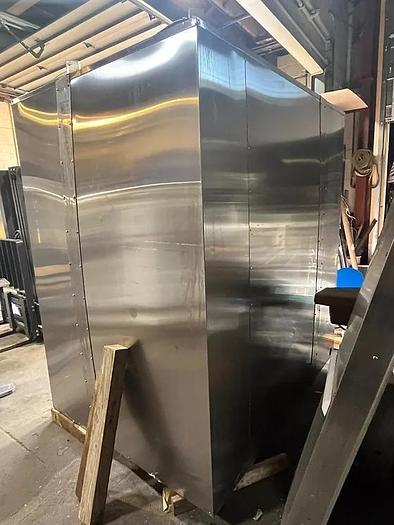

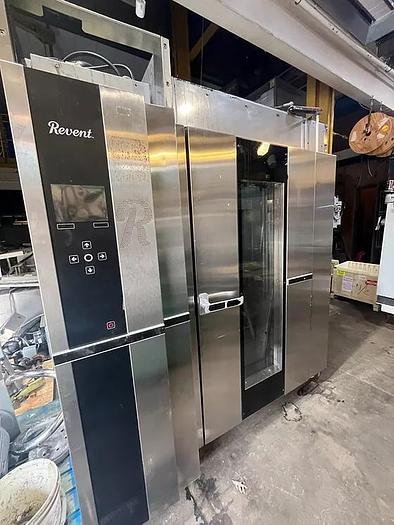

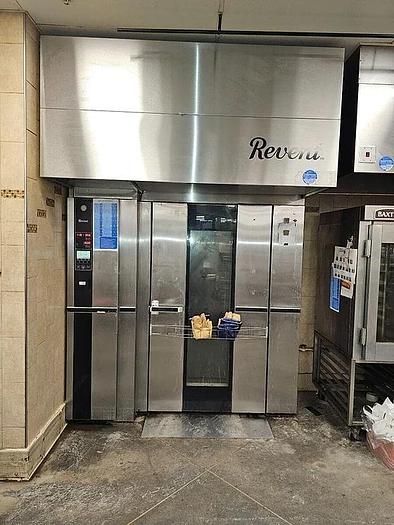

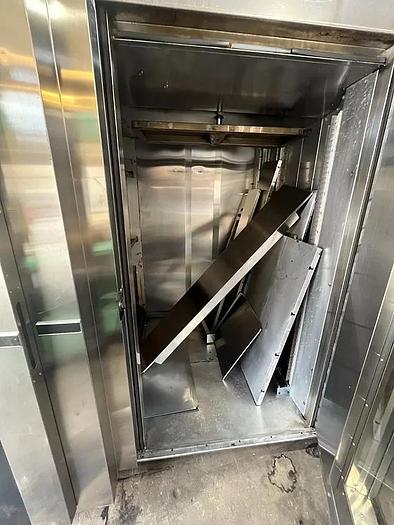

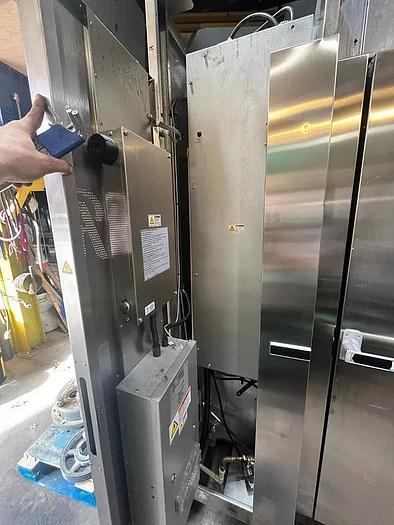

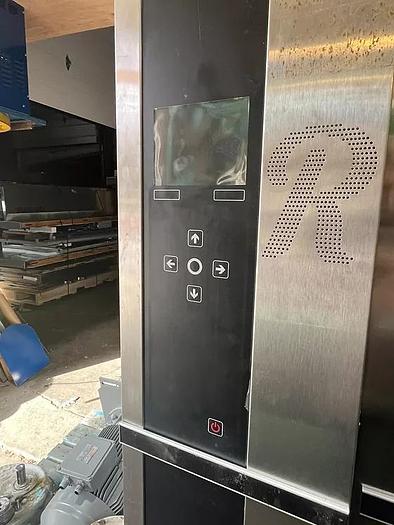

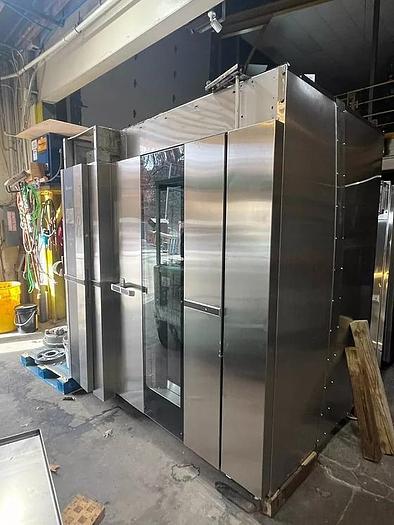

Revent 724E Double Rack Oven

Revent 724E Double Rack Oven

Description

Revent 724E Double Rack Electric Oven, Voltage: 240-440 v / 3 Ph


Specifications:

  • Maximum Heat Capacity 74.8 kW
  • Temperature range 50˚-300˚C / 122 - 575 F
  • Product net weight 1665 kg* / 3700 lbs
  • Minimum Door Opening 875 x 1760 mm / 34 in x 69 in
  • (standard 3-section + steam box delivery)
  • Minimum intake opening 1760 x 2510 mm / 69 in x 98 in
  • (optional one-piece shipment)
  • Minimum section tilt up height: 2700 mm / 106.5 in (without motor)
  • Max load for rack lift and platform 400 kg / 880 lbs
  • Steam Generation 8,5 l/ 20 sec at 250˚C
  • Tubular electrical heaters Stainless steel
  • Manufacturing material Stainless steel
  • Steam and damper control Automatic
  • Door Double glass


Utility requirements:

Electrical

  • Standard 3PH208-220V+N 16A
  • Optional 3PH440-480V 8A
  • +1PH/120V/60 Hz 15A

Contact factory for other power options

  • Gas
  • Natural Gas 343,000 btuh @ 7-14” w.c and ¾” drop to ½” NPT
  • Liquid propane
  • Water and Drain
  • Water Supply ½”NPT ø 60-65 PSI cold

Drain 1” NPT, optional connection to rear

  • Water quality pH 7-8.5
  • Hardness 4-7 gr/gals.
  • Acceptable range for chloride
  • concentration 0-50 ppm

Ventilation

Combustion flue

Directly from top of oven connect 8” tee and install barometric damper (included with oven). Above this damper install draft inducer (included with oven) into 8 “single wall combustion exhaust pipe. Run 8” type “B” vent from top of draft inducer and continue on through the roof.

Specifications

ManufacturerRevent
Model724E
ConditionRefurbished
Stock Number00093
