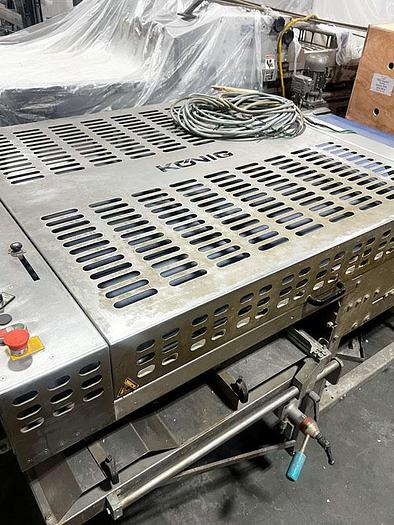

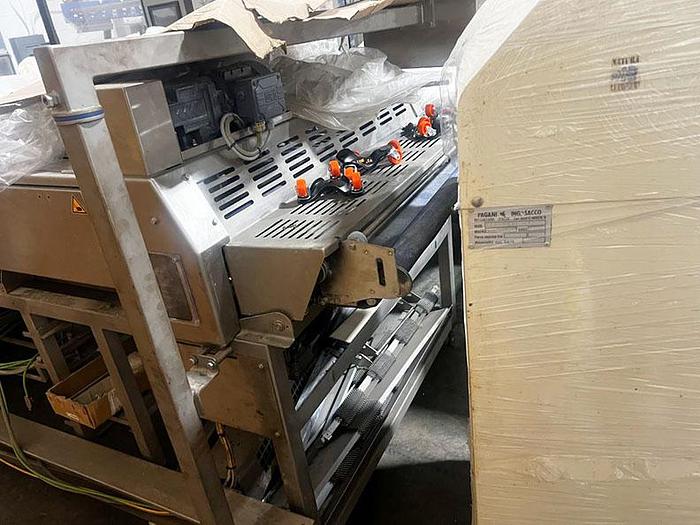

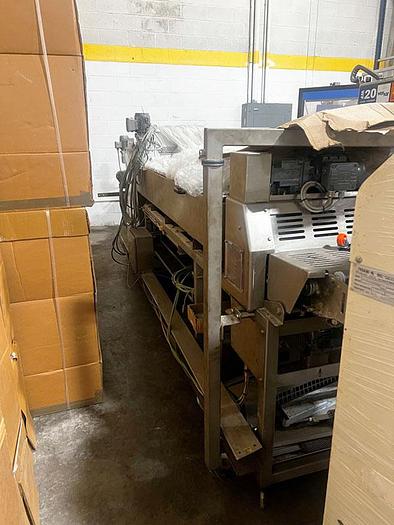

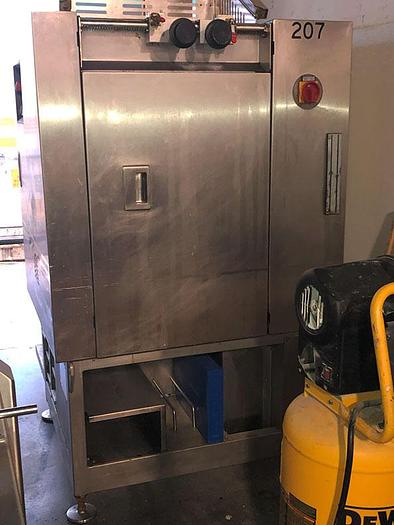

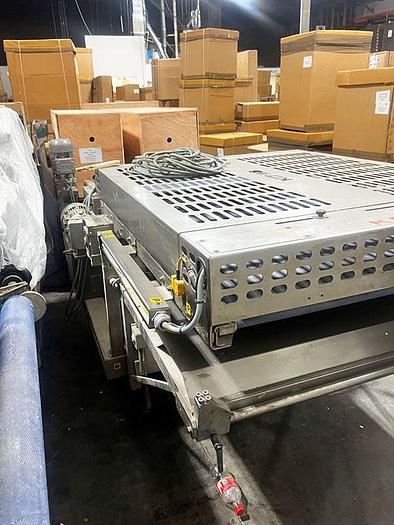

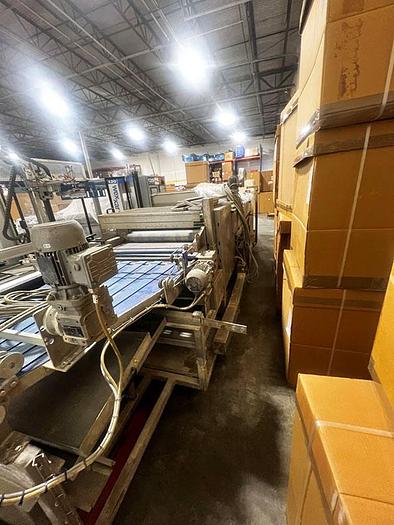

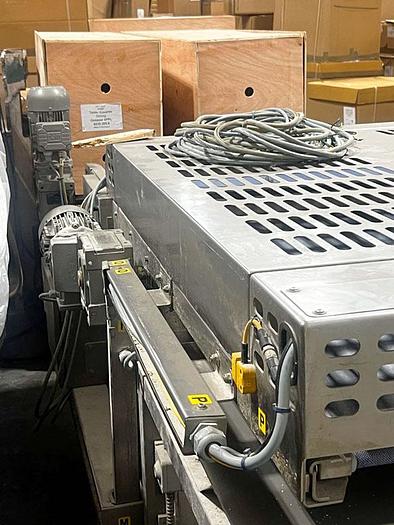

Koenig Multi Roll Line w/ Moulder and Panner

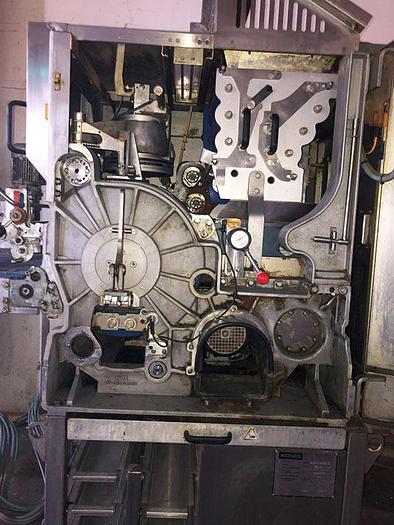

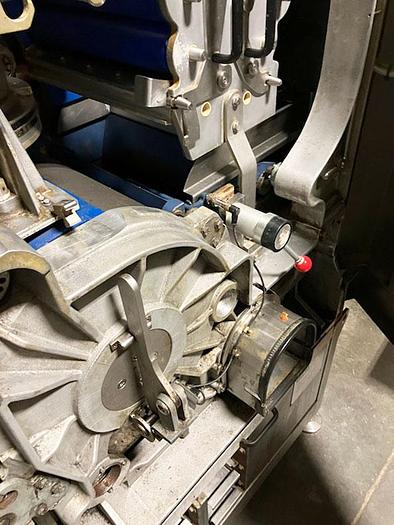

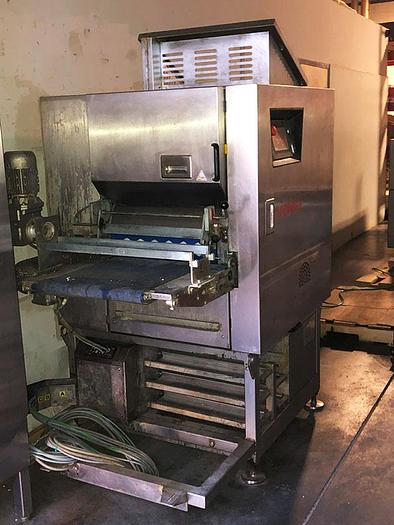

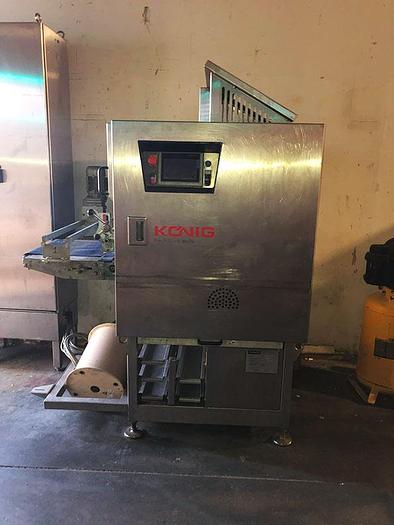

Konig Dividing / Rounding Line

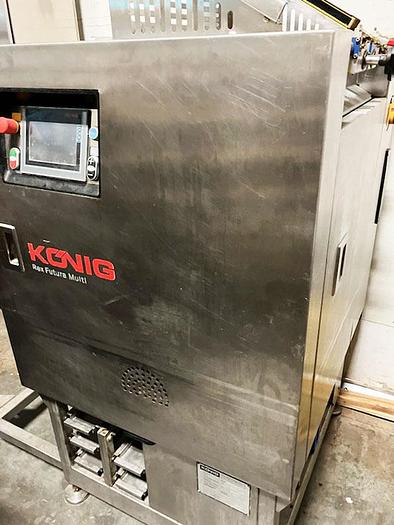

Model: REX Futura Multi T 6/4 S

·         4 or 6 Rows

·         Max. 25 strokes / minute

·         Infeed roller hopper with safety light grid

·         Rollers and star cutter wheels extractable for cleaning purposes

·         Flour duster for infeed roller hopper extractable for cleaning purposes

·         Exchangeable piston ledges and exchangeable rounding plate

·         Including three (3) sets of piston ledges and two (2) rounding plates

Weight Range:

·         SK54 ledge set - 6 row - 25g to 65g depending on dough – up to 9,000 pcs/hr

·         SK63 ledge set - 6 row - 50g to 105g depending on dough – up to 7,500 pcs/hr

·         SK85 ledge set - 4 row - 140g to 245g depending on dough – up to 6,000 pcs/hr

·         6 row rounding plate

·         4 row rounding plate

·         No row reduction parts are included based on the pan patterns presented

·         Adjustable rounding pressure

·         Dis-connectable rounding action

·         Rounding eccentricity adjustable via servo drive

·         Short, Single discharge belt

·         Pressure roller with duster above discharge belt

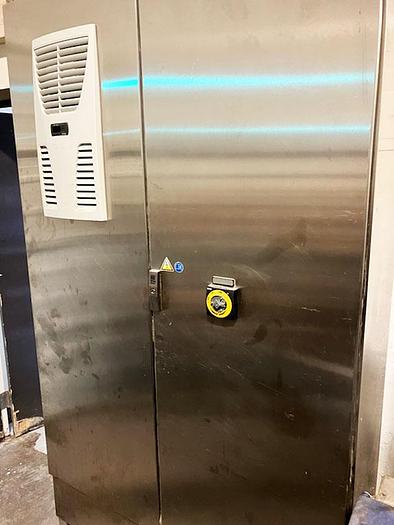

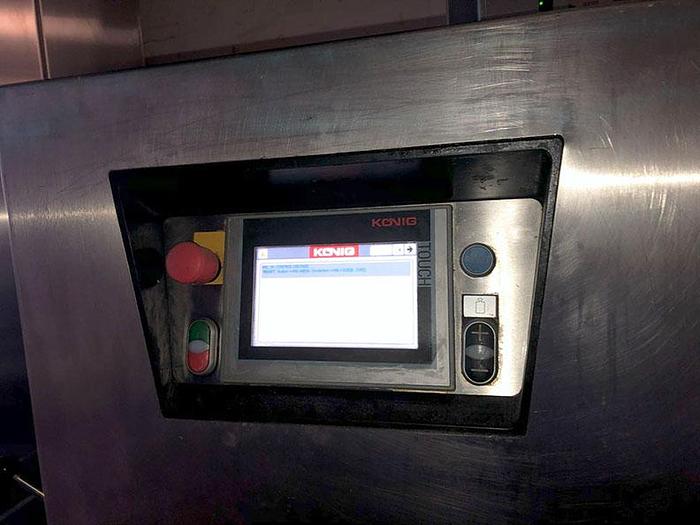

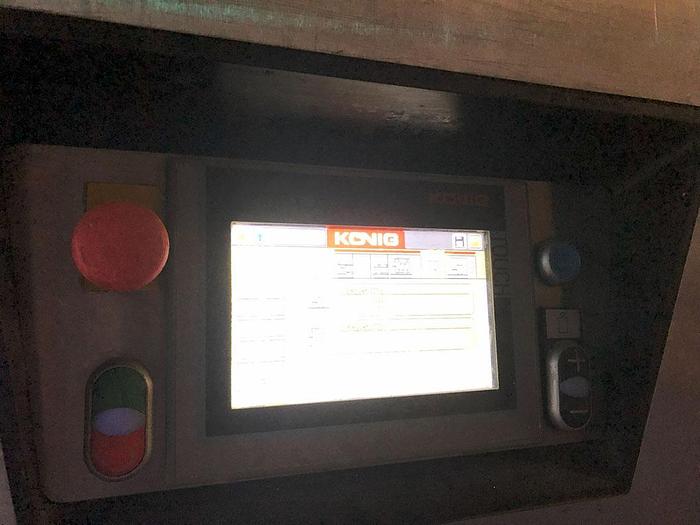

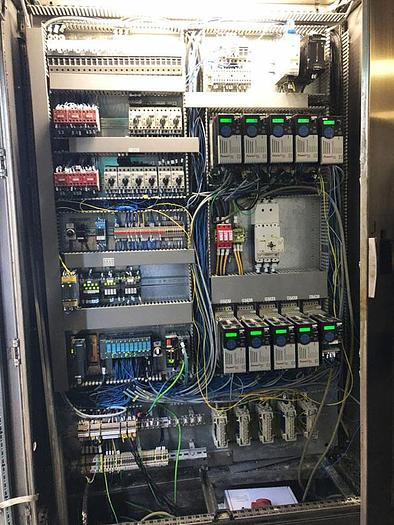

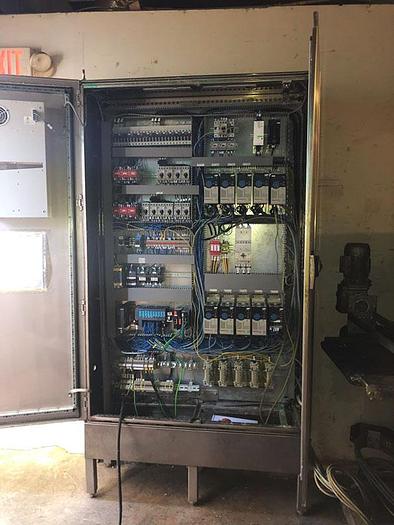

·         Operation via touch panel and PLC control

Item 2

Spreading belts

·         After the short single discharge belt of the Rex Futura Multi

·         Consisting of single rubber belts, manually adjustable acc. to the required number of rows

Item 3

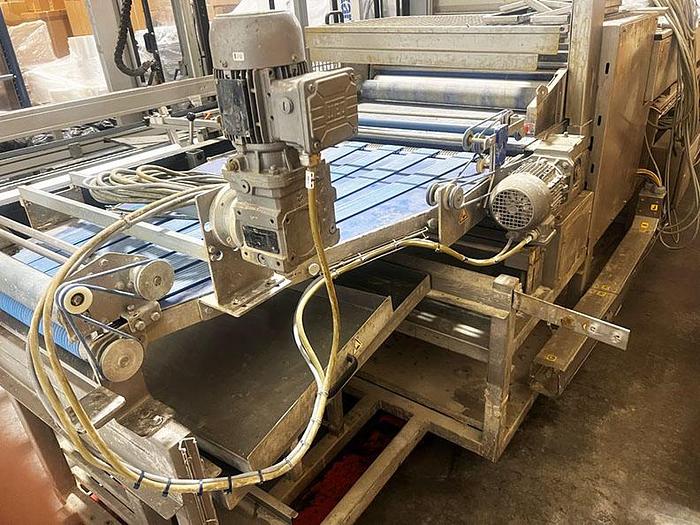

1 Forming station SCHR WK RR 1000

·         Nominal width 1000 mm

·         Double roller sheeter, gap width adjustable

·         Drag belt

·         With flour duster mounted above upper belt

·         Driven bottom belt RR

·         Driven top belt RR, speed continuously adjustable, direction of rotation reversible

·         Timing roller for row correction with insertable transfer roller to the following setting unit

·         One set of 4 row side guides for long products

Item 4

Retracting belt AS 1000/800

·         Working width 1000 mm

·         Retracting length up to max. 800 mm adjustable
