2004 Koenig Konig Combi Line KCL 8

Koenig Combi Line KCL 8 - DOM: 2004

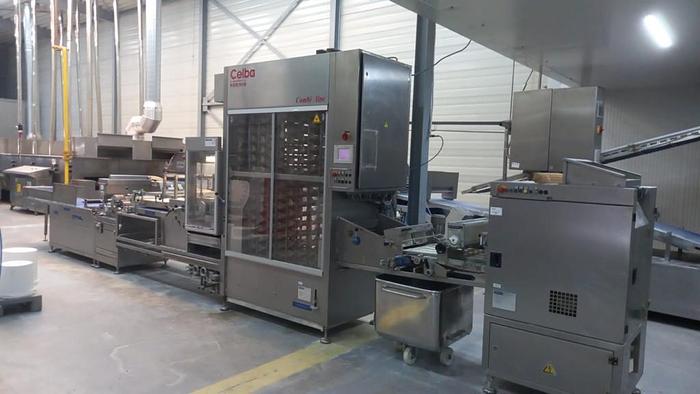

Koenig Combi Line KCL 8 modular bun roll line for the production of high quality products

Out put and products:

Flattened products (e.g. dough for Streuselschnecke) approx. 80g up to 6,000 pieces/hour; product diameter approx. 100-110mm – main product!

Round unstamped products: up to 7,500 pieces/hour

Round stamped products max. 75g (e.g. Kaiser): up to 7,500 pieces/hour

Long-rolled pressed products max. 75g (e.g. Styrian long roll, Housky): up to 6,000 pieces/hour

Long-rolled sliced products max. 75g (e.g. sliced rolls): up to 6,000 pieces/hour

Long-rolled products max. 85g up to 6,000 pieces/hour depending on the product length; max. product length 150mm

Flat-pressed products max 85g up to 6000 pieces/hour depending on product diameter; max. product diameter 120mm

Koenig Rex Classic I head machine 3, 4 or 5 rows

SK 58 weight range 35-85 gram

Capacity 3, 4, 5 row maximum 4500, 6000 or 7500 pcs/h

Köenig Combi Line R 600-VG 190/230-ST/K-K5-VO-SL4-Hou4-SCHN4-RR 560-4R –AS600 consisting of:

Pre-long rolling station R600

SPS Siemens Blue Line digital control panel

Pre-prover VG190/230

Stamping device with 3 stamps:

Kaiser

Schnitt (cut)

stamped

Forming station RR-560-4R

Driven lower belt

Pre-pressure roller adjustable

4 driven rollers 4R via lower belt – speed continuously adjustable – for flattening; flour duster thru R4

Useable long moulding board for long rolling

Setting unit AS600/K+L

Setting device mechanically prepared for later installation of a Streuselstation – in line or to the left or right – front protective cover on the setting device for removal
