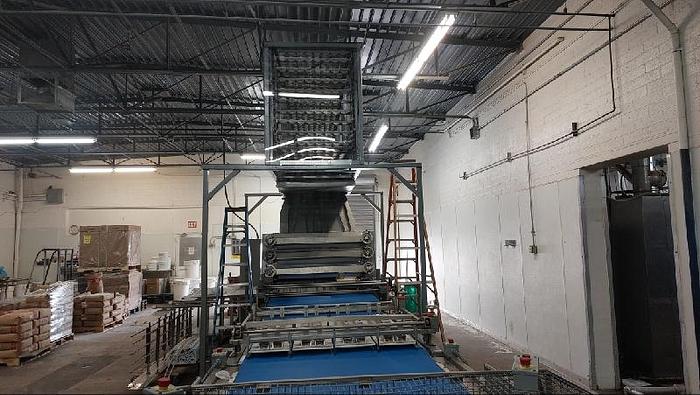

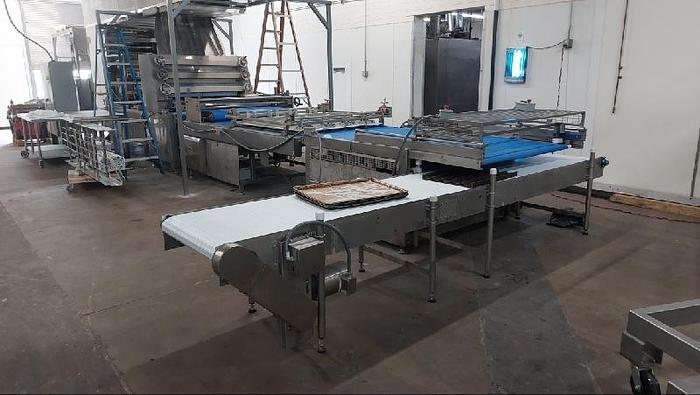

Gemini WP Roll Line

WP 8/10 Tewimat Roll line – overall dimensions: 48’ L x 11’ H x 55” W (Belt 52”), DOM: 2002, Voltage: 460 / 3 ph

Note: Complete System is fully rebuilt except the WP Divider, It will need to be rebuilt.

Full Rebuild Includes:

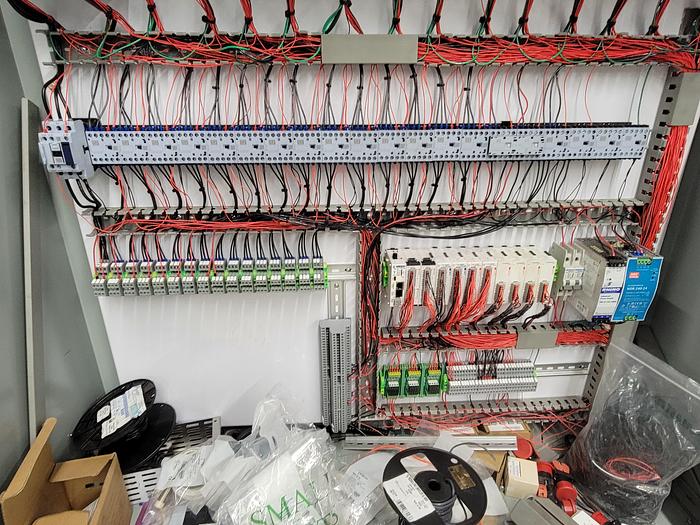

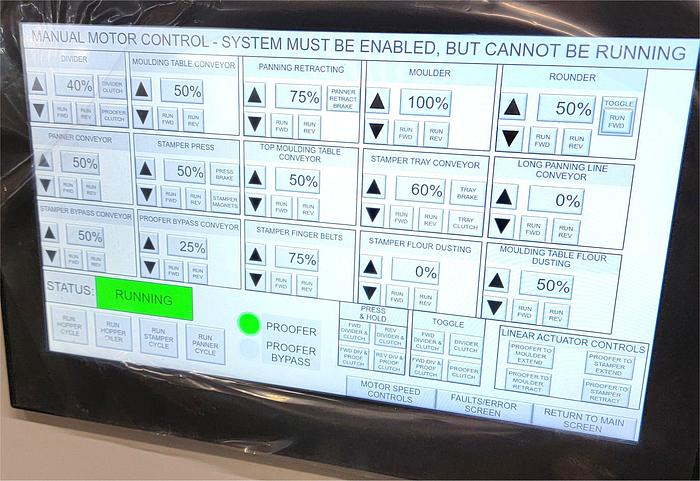

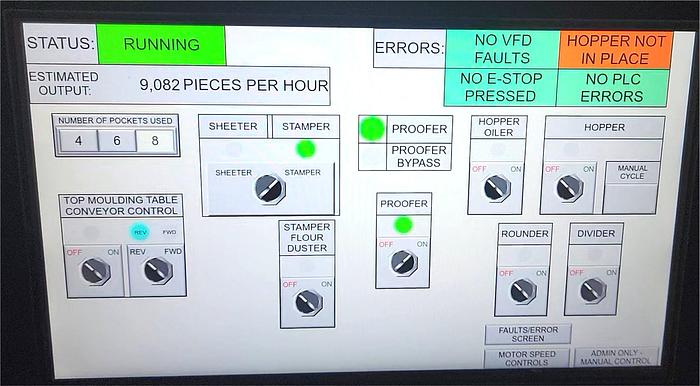

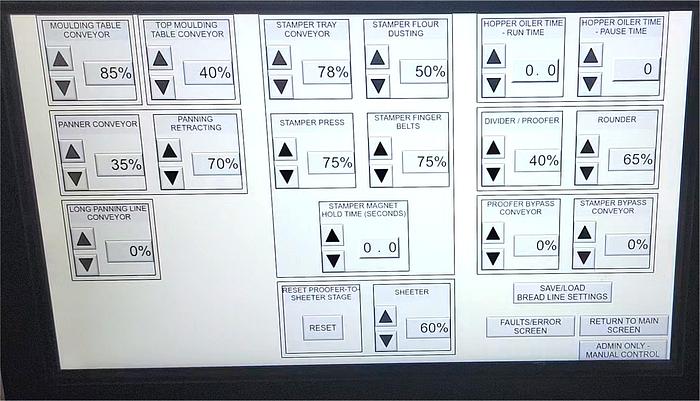

* Brand New Electrical Package and Touch Screen Controls

* Complete Dismantle and Evaluation

* Replace any needed bearings, chains, sprockets

* All Electric Motors will be sent out to be rewound

* All Electrical contactors, relays, wiring, safety switches

* Updated controls and control panel

* Paint all exterior painted surfaces

* Repair or replace any SS Panel missing or damaged

* Replace all conveyor belting and covers for moulding boards

* Replace any damaged Proofer trays/pockets

* Hydraulic pump and cylinders and sent out for rebuilding

* Replace all Plexiglass for Proover

* Once Complete assemble and test operation with Product

* Tewimat Divider uses no Oil for Dividing

Included:

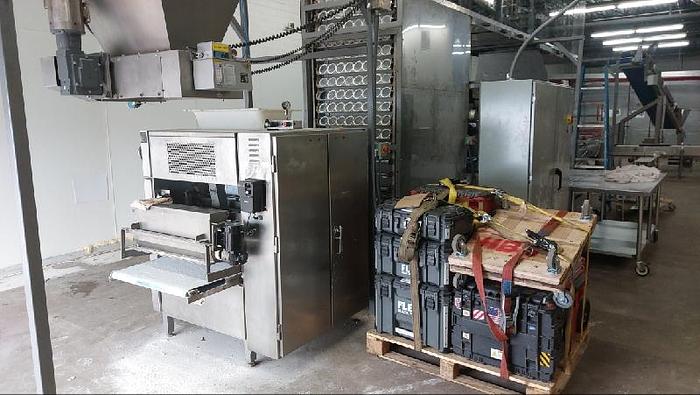

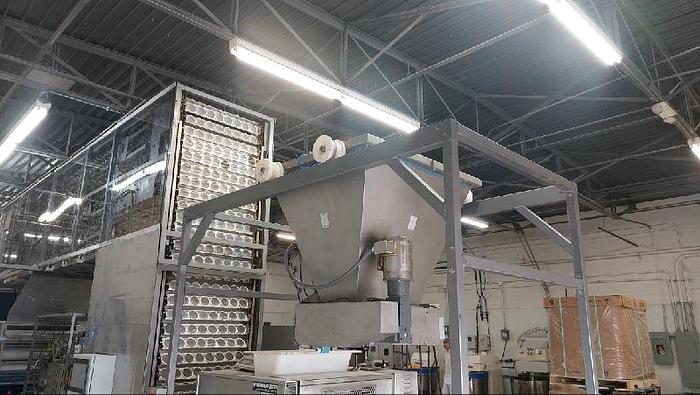

** Glimek Chunker – Mounted above WP Tewimat S 8 Divider Rounder

** WP Tewimat S 8/10 Divider Rounder - 55" L

*  8 Pocket 1 to 6 oz.

*  48' L x 7-1/2' W, Belt width 55 Inch

*  Capacity up to 30,000 pc per hr.

*  No Divider Oil Required

*  2 Rounding Drums / 8 Across

*  Several dividing block arrangements

Note: Additional dividing blocks and rounding drums available

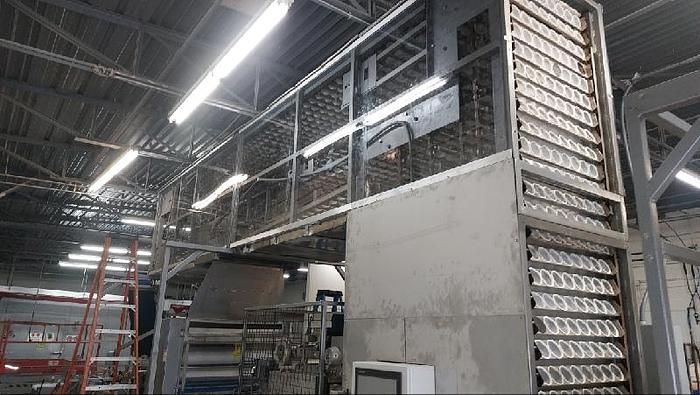

** Overhead Proofer - 23' L x 78" W

*  Proofer 170 to 200 trays with an 8 to 10 minutes proof time

*  Heavy weight square tube design

*  Centralized Control Panel

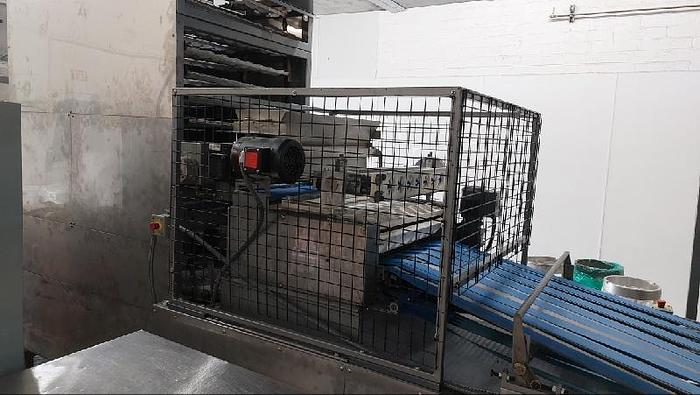

** Turret head roll stamper - Kaisers, Split, Portuguese rolls. - 77"

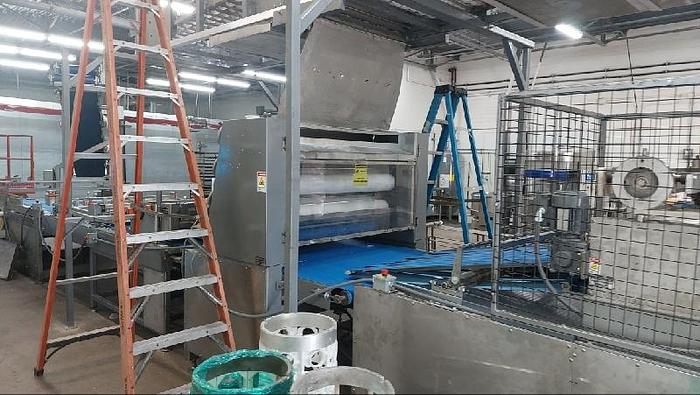

** Sheeting Head - 73" L

*  3 head design – fully adjustable

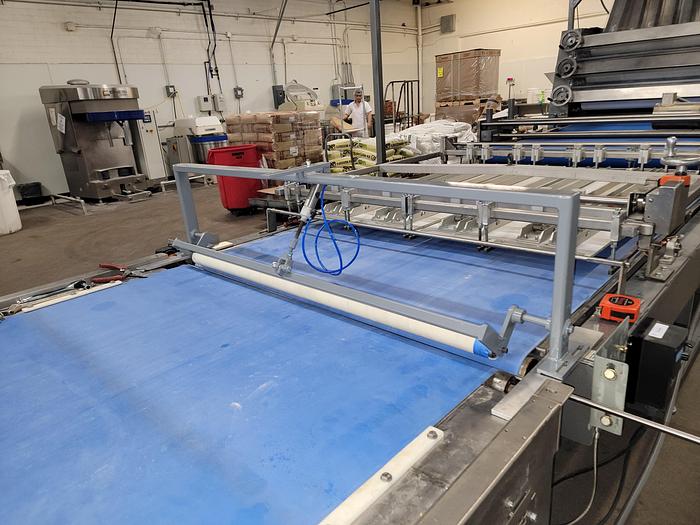

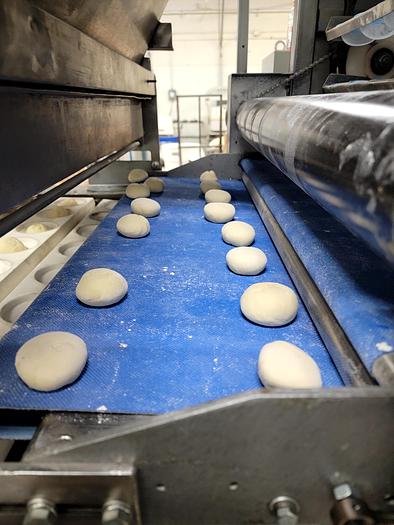

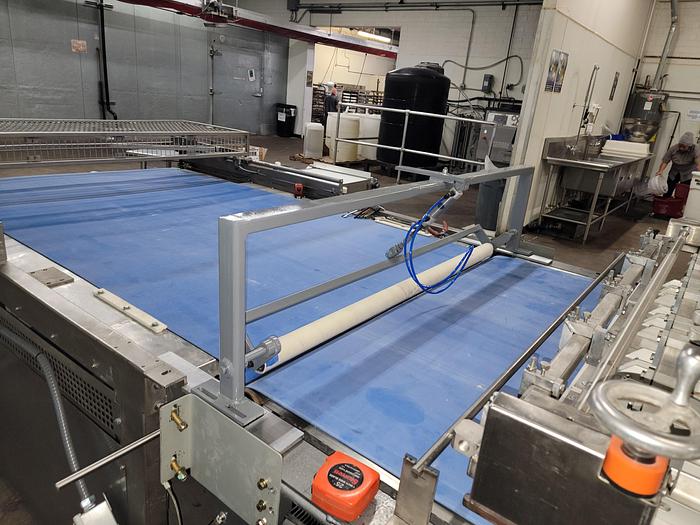

** Moulding Station – 52” Usable Belt - 99" L

* Pre Moulding Board - 24" L

* Can mould from 4” to 12”; see moulding boards below

*  Several Moulding Plates available

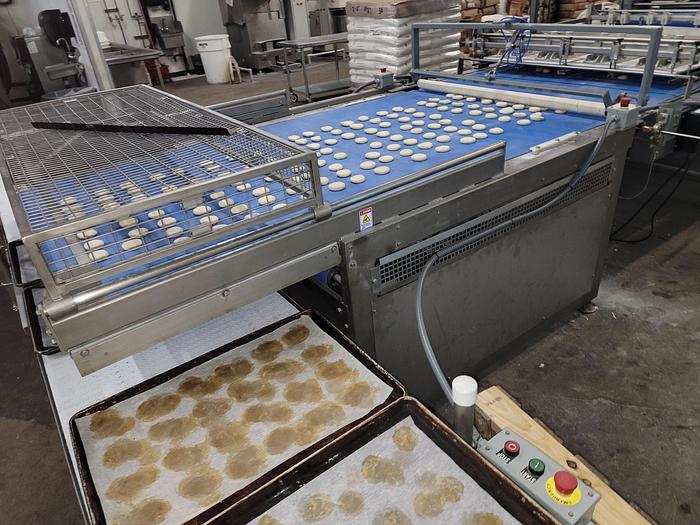

** Reciprocating Panner with Row Control - 99"

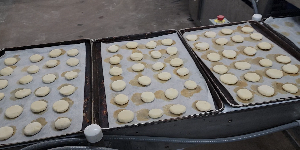

*  Automatic Panning with Cross Conveyor

** Cross Conveyor for Panning w/ additional take away conveyor

This line has already been rebuilt and is ready to ship.
