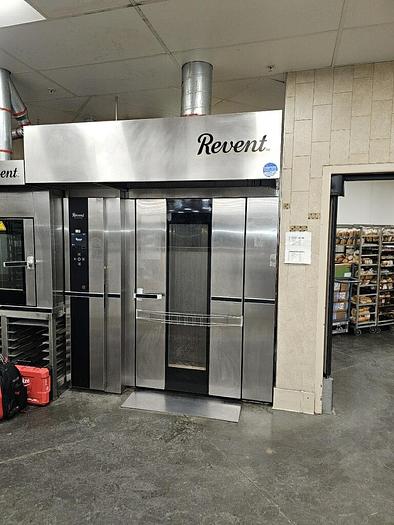

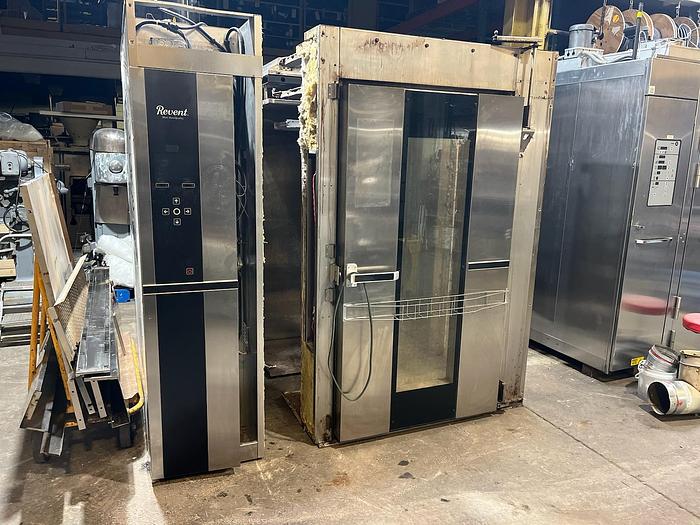

Revent 724G Double Rack Ovens

Revent 724G Double Rack Ovens

Description

Revent 724 Double Rack Oven Gas, Stainless Steel Interior and Exterior, Type "A" Rack Carrier, Nat Gas Fired, 343,000 BTU, Voltage: 208-240 / 3 Ph+N


Specifications:

  • Maximum Heat Capacity 343,000 BTU/H
  • Temperature range 50˚-300˚C / 122 - 575 F
  • Product net weight 1665 kg* / 3700 lbs
  • Minimum Door Opening 875 x 1760 mm / 34 in x 69 in
  • (standard 3-section + steam box delivery)
  • Minimum intake opening 1760 x 2510 mm / 69 in x 98 in
  • (optional one-piece shipment)
  • Minimum section tilt up height: 2700 mm / 106.5 in (without motor)
  • Max load for rack lift and platform 400 kg / 880 lbs
  • Steam Generation 8,5 l/ 20 sec at 250˚C
  • Tubular electrical heaters Stainless steel
  • Manufacturing material Stainless steel
  • Steam and damper control Automatic
  • Door Double glass


Utility requirements:

Electrical

  • Standard 3PH208-220V+N 16A
  • Optional 3PH440-480V 8A
  • +1PH/120V/60 Hz 15A

Contact factory for other power options

  • Gas
  • Natural Gas 343,000 btuh @ 7-14” w.c and ¾” drop to ½” NPT
  • Liquid propane
  • Water and Drain
  • Water Supply ½”NPT ø 60-65 PSI cold

Drain 1” NPT, optional connection to rear

  • Water quality pH 7-8.5
  • Hardness 4-7 gr/gals.
  • Acceptable range for chloride
  • concentration 0-50 ppm

Ventilation

Combustion flue

Directly from top of oven connect 8” tee and install barometric damper (included with oven). Above this damper install draft inducer (included with oven) into 8 “single wall combustion exhaust pipe. Run 8” type “B” vent from top of draft inducer and continue on through the roof.

Specifications

ManufacturerRevent
Model724 G
ConditionUsed
Stock Number00065
